Engine Cooling - Component Location
WARNING: This page is about a different variant/trim than selected.
NOTE:

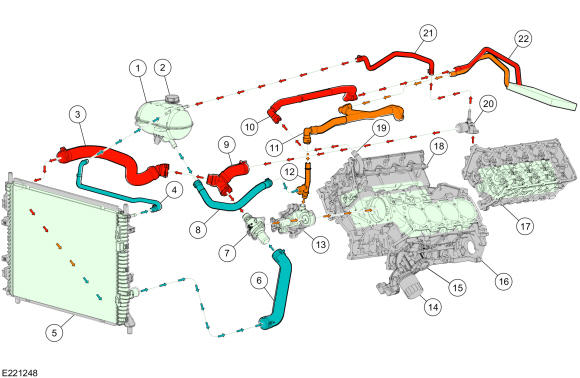

Coolant temperature will vary with ambient temperature and load. Temperatures shown are for ambient temperature of 38° C (100° F). Red arrows indicate a temperature over 82.2° C (180° F), Orange arrows indicate a temperature of approximately 82.2° C (180° F), Blue arrows indicate a temperature below 82.2° C (180° F).
| Item | Description |
|---|---|
| 1 | Degas bottle |
| 2 | Pressure relief cap |
| 3 | Upper radiator hose |
| 4 | Radiator-to-degas bottle hose |
| 5 | Radiator |
| 6 | Lower radiator hose |
| 7 | Thermostat housing |
| 8 | Degas bottle-to-engine hose |
| 9 | Coolant bypass T assembly |
| 10 | Heater inlet hose |
| 11 | Heater outlet hose |
| 12 | Heater outlet tube |
| 13 | Coolant pump |
| 14 | Oil filter |
| 15 | Oil filter adapter |
| 16 | Cylinder block |
| 17 | Cylinder head LH |
| 18 | Cylinder head RH |
| 19 | Heater inlet tube |
| 20 | Coolant outlet connector |
| 21 | Coolant outlet connector-to-degas bottle hose |
| 22 | Heater core |
