Cooling Fan Motor and Shroud: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the air cleaner. Refer to: Air Cleaner .
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

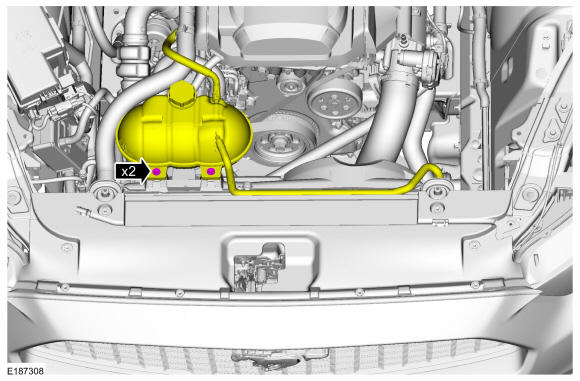

- Remove the bolts and position the degas bottle aside.
Torque: 80 lb.in (9 Nm)

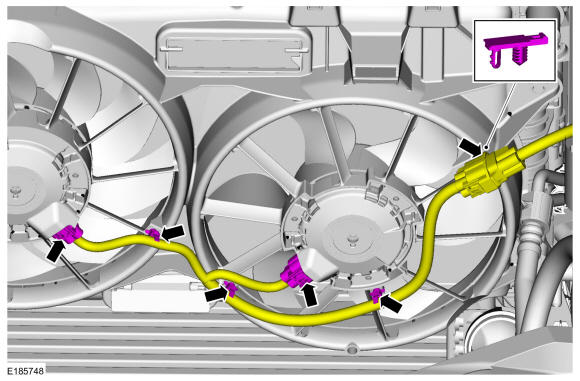

- Disconnect the cooling fan electrical connectors and detach the wiring harness retainers.

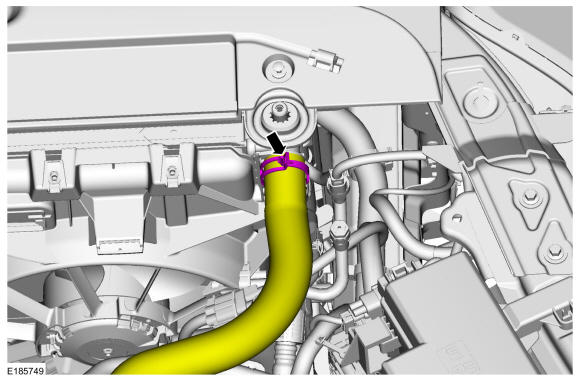

- Release the clamp and disconnect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

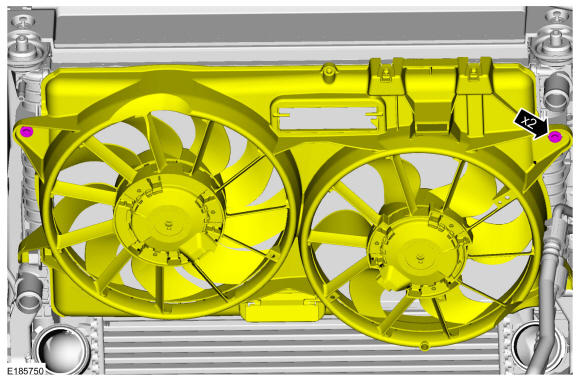

- Remove the bolts.
Torque: 53 lb.in (6 Nm)

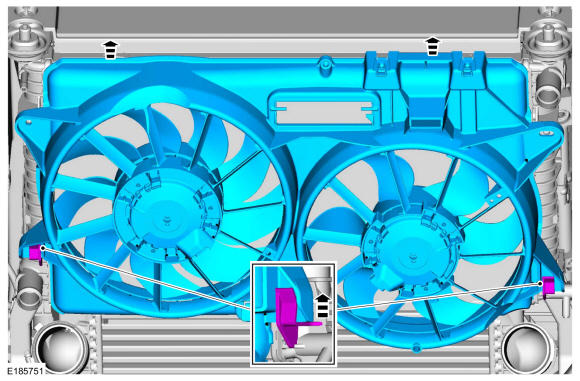

- Remove the cooling fan motor and shroud.
