Coolant Pump: Installation
WARNING: This page is about a different variant/trim than selected.
- Install a new coolant pump O-ring seal and lubricate it with clean engine coolant.
Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

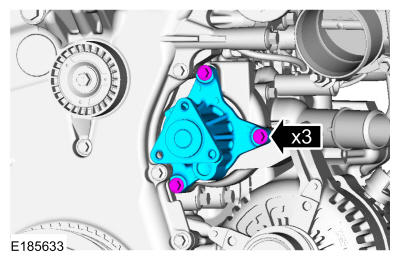

- Install the coolant pump and the bolts.
Torque: 89 lb.in (10 Nm)

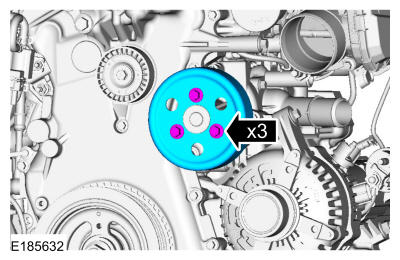

- Position the coolant pump pulley and install the bolts finger tight.

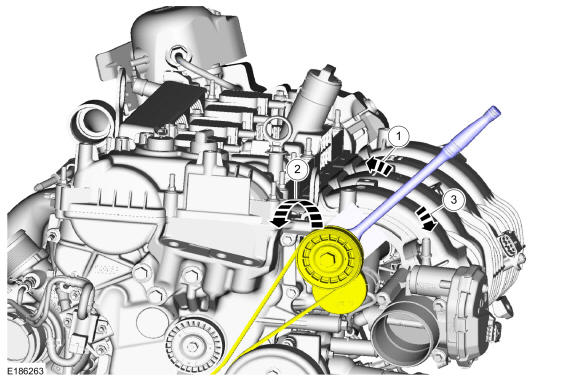

- Rotate the accessory drive belt tensioner counter clockwise and position back the accessory drive belt.

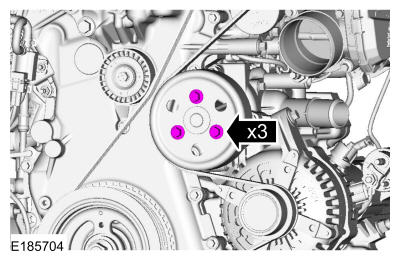

- Tighten the coolant pump pulley bolts.
Torque: 177 lb.in (20 Nm)
- Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

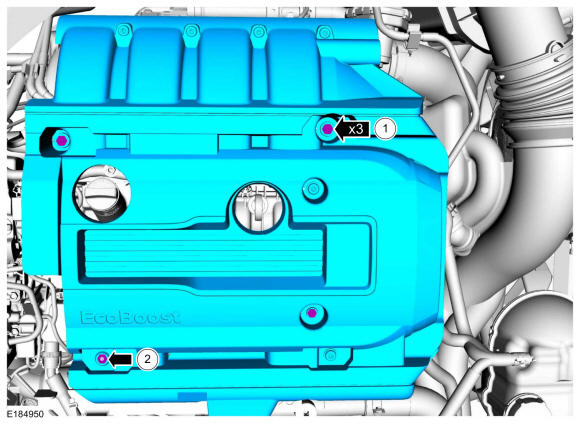

- Install the engine appearance cover and the retainers.
Torque: 1: 53 lb.in (6 Nm) 2: 89 lb.in (10 Nm)
- Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
