Gearshift Lever Boot: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the gearshift lever boot and attach the retainers.
    GFD288564Courtesy of FORD MOTOR COMPANY

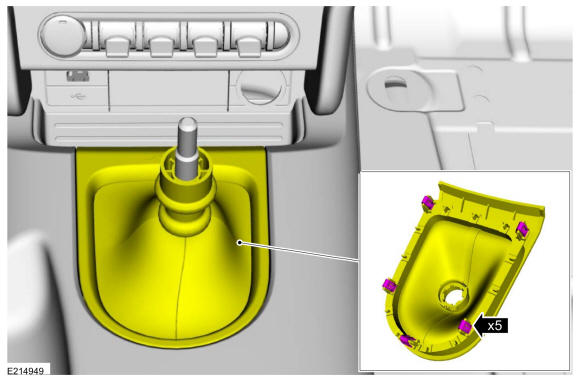

  2. Install the gearshift lever boot to the floor console.
    GFD288565Courtesy of FORD MOTOR COMPANY

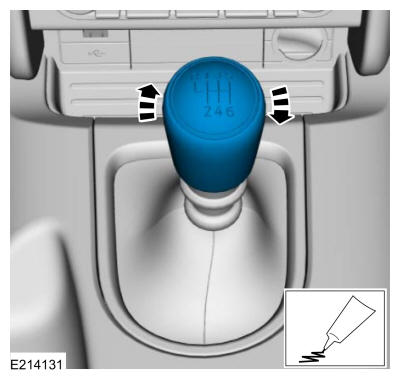

  3. Install the gearshift knob, remove the tape from the gearshift knob surface.

    Material: Motorcraft® Threadlock and Sealer / TA-25-B

GFD288566Courtesy of FORD MOTOR COMPANY
