Transmission - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS)

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle
Courtesy of FORD MOTOR COMPANY	307-003 (T57L-500-B) Holding Fixture, Transmission
Courtesy of FORD MOTOR COMPANY	308-130 (T87T-7025-DH) Installer, Shift Rail Needle Bearing TKIT-1987-FLMH
Courtesy of FORD MOTOR COMPANY	308-375 Remover, Input Shaft Seal TKIT-2005U-M TKIT-1999-F/FLM/LT
Courtesy of FORD MOTOR COMPANY	308-810 Remover, Syncro Gear Pack TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW
Courtesy of FORD MOTOR COMPANY	308-938 Remover/Installer, Companion Flange Nut TKIT-2014D-ROW2 TKIT-2014D-FL_ROW
Slide Hammer Dent Puller
Slide Hammer
Three Leg Puller
Hydraulic Press
Center Punch
Two Leg Puller
Locking Pliers

WARNING: Do not breathe dust or use compressed air to blow dust from storage containers or friction components. Remove dust using government-approved techniques. Friction component dust may be a cancer and lung disease hazard. Exposure to potentially hazardous components may occur if dusts are created during repair of friction components, such as brake pads and clutch discs. Exposure may also cause irritation to skin, eyes and respiratory tract, and may cause allergic reactions and/or may lead to other chronic health effects. If irritation persists, seek medical attention or advice. Failure to follow these instructions may result in serious personal injury.

Clean the transmission exterior with solvent and dry with compressed air. During disassembly, clean all components with solvent and dry with compressed air.

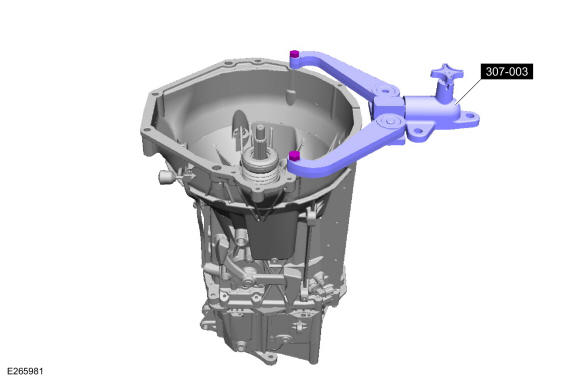

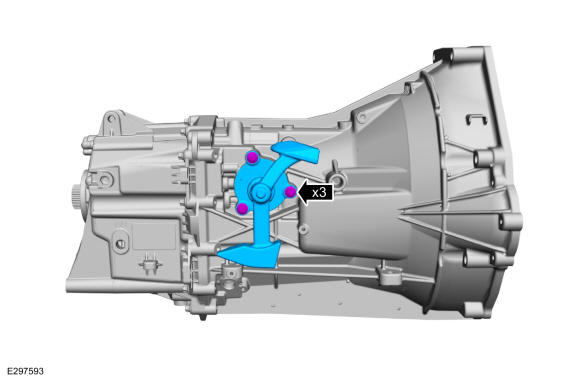

Attach the transmission to the special tool. Use Special Service Tool: 307-003 (T57L-500-B) Holding Fixture, Transmission.

Courtesy of FORD MOTOR COMPANY
1. Remove the slave cylinder bolts.
2. Pull the clutch slave cylinder outward and release the tube from the retaining clip and if equipped, remove the clutch slave cylinder spacer.
Courtesy of FORD MOTOR COMPANY
Inspect the clutch slave cylinder for the following:
- Damaged boot
- Leaking brake fluid
- Worn or damaged release bearing
- Rotate the release bearing while applying pressure. If the bearing rotation is rough, install a new clutch slave cylinder.
Using the special tools, remove and discard the input shaft seal. Use Special Service Tool: 308-375 Remover, Input Shaft Seal. Use the General Equipment: Slide Hammer

Courtesy of FORD MOTOR COMPANY

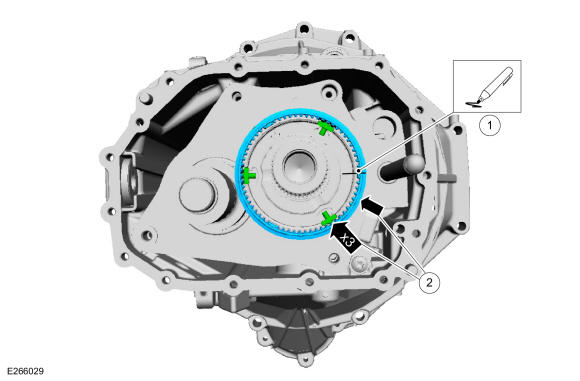

Using a center punch, mark a location in the center of the countershaft bolt cover. Using a drill bit of the appropriate size for the dent puller, drill a hole in the center of the countershaft bolt cover. Drill the hole to pierce the countershaft bolt cover approximately 2 mm (0.078 in) in depth. Use the General Equipment: Center Punch

Courtesy of FORD MOTOR COMPANY
Using the special tool, remove and discard the countershaft bolt cover. Use the General Equipment: Slide Hammer Dent Puller

Courtesy of FORD MOTOR COMPANY
Install the special tools, position the shift shaft into 4th gear. Use Special Service Tool: 308-938 Remover/Installer, Companion Flange Nut.

Courtesy of FORD MOTOR COMPANY
With the help of an assistant, hold the special tools and remove the countershaft bolt.

Courtesy of FORD MOTOR COMPANY
Using the special tools, hold the output shaft flange and remove the bolt. Use Special Service Tool: 308-938 Remover/Installer, Companion Flange Nut.

Courtesy of FORD MOTOR COMPANY
Using the three leg puller and the step plate, remove the output shaft flange. Use the General Equipment: Three Leg Puller

Courtesy of FORD MOTOR COMPANY

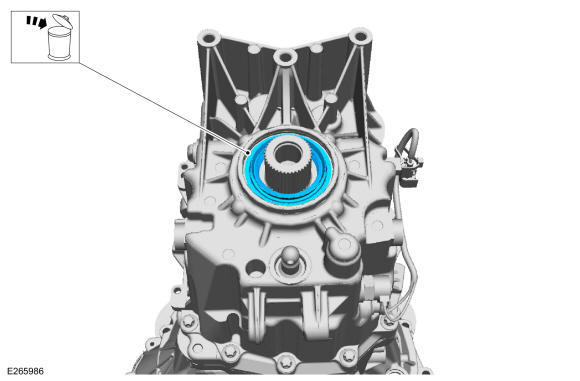

Remove and discard the output shaft seal.

Courtesy of FORD MOTOR COMPANY
Remove the transmission breather assembly, if necessary.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and the OSS sensor.

Courtesy of FORD MOTOR COMPANY

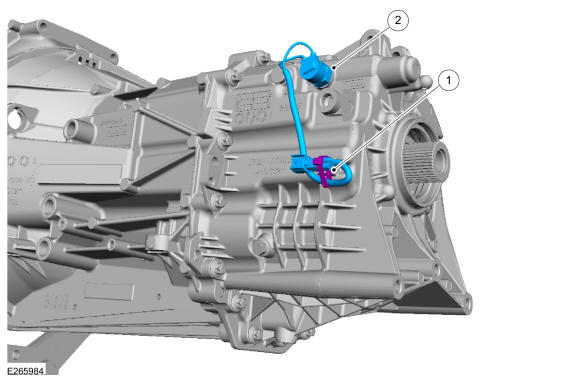

1. Detach the electrical connector retainer.
2. Remove the reverse lamp switch.
Courtesy of FORD MOTOR COMPANY
Remove the LH and RH reverse gear shift fork pivot bolts.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the shift shaft dampener. Replace O-ring if necessary.

Courtesy of FORD MOTOR COMPANY

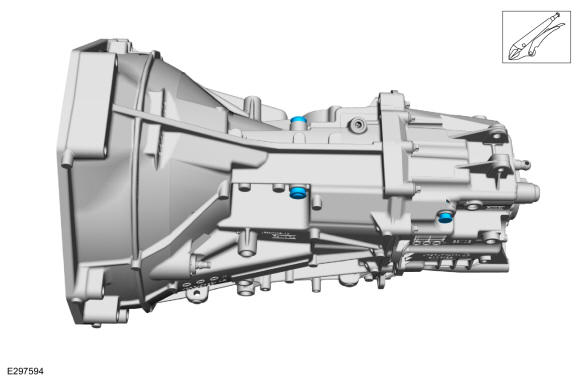

Using locking pliers with a slide hammer, remove the shift rail detents. Use the General Equipment: Slide Hammer. Use the General Equipment: Locking Pliers

Courtesy of FORD MOTOR COMPANY

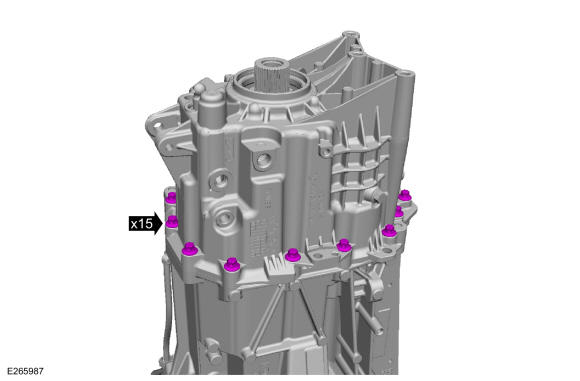

Remove the transmission case bolts.

Courtesy of FORD MOTOR COMPANY

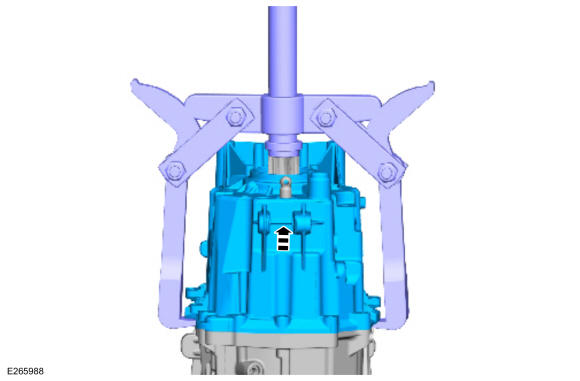

Using the two leg puller and the step plate, remove the rear transmission case. Use the General Equipment: Two Leg Puller

Courtesy of FORD MOTOR COMPANY
Remove the 1st\2nd and reverse shift rail.

Courtesy of FORD MOTOR COMPANY
Remove the reverse shift fork and the reverse shift rail assembly.
- Inspect the reverse shift fork and reverse shift rail assembly for wear or damage. Install new components as necessary.
Courtesy of FORD MOTOR COMPANY
Remove the 1st/2nd shift fork.
- Inspect the 1st/2nd shift fork for wear or damage. Install new components as necessary.
Courtesy of FORD MOTOR COMPANY

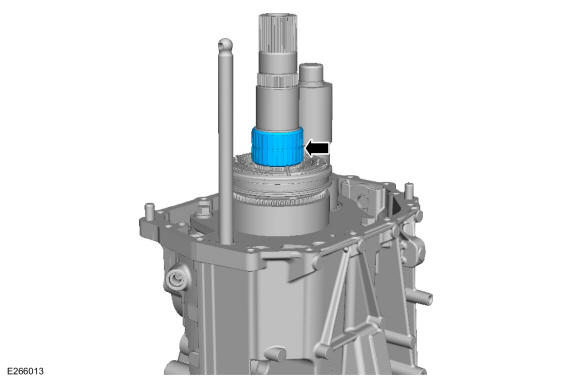

Using the push/puller set, step plate and special tool, remove the 1st gear, the reverse gear and the reverse gear synchronizer assembly.
- Inspect the 1st and reverse gears for wear or damage. Install new gears as necessary.
- Inspect the reverse gear needle bearing and the reverse gear needle bearing race for wear or damage. Install new components as necessary.
- Inspect the reverse gear synchronizer assembly and the reverse gear synchronizer ring for wear or damage. Install new components as necessary. Use Special Service Tool: 308-810 Remover, Syncro Gear Pack.
Courtesy of FORD MOTOR COMPANY

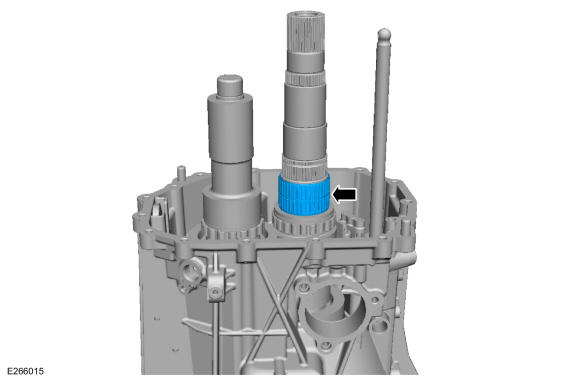

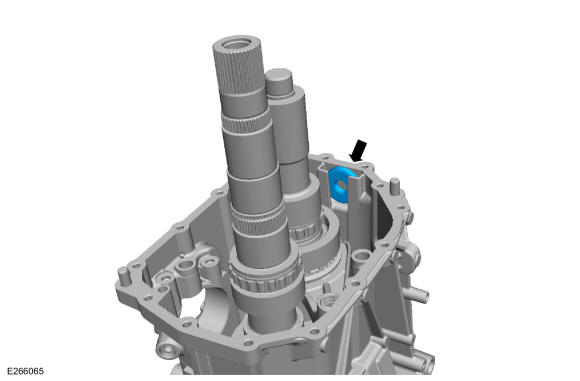

Remove the 1st gear needle bearing.
- Inspect the 1st gear needle bearing for wear or damage. Install a new 1st gear needle bearing as necessary.
Courtesy of FORD MOTOR COMPANY

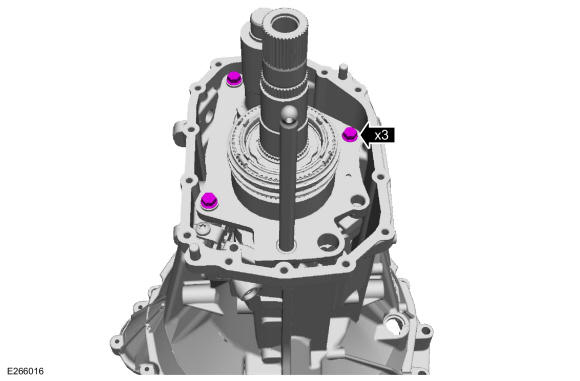

Remove the center support bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Note the position of each synchronizer ring component before removal.

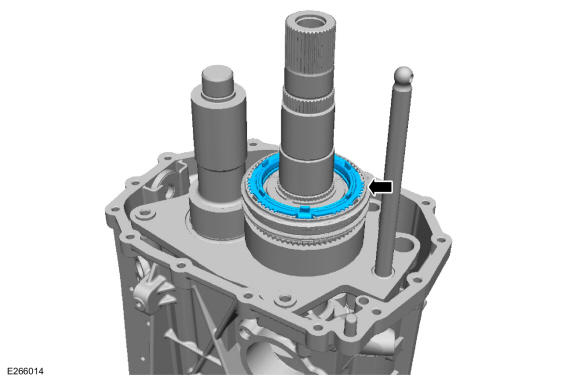

Remove the 1st gear synchronizer ring assembly.
- Inspect all synchronizer ring components for wear or damage. Install new components as necessary.
Courtesy of FORD MOTOR COMPANY

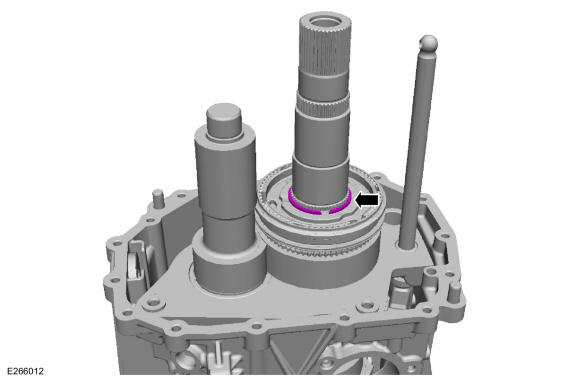

Remove the 1st/2nd synchronizer hub snap ring.

Courtesy of FORD MOTOR COMPANY
NOTE: Index-mark the synchronizer sleeve to the synchronizer hub before removal.
1. Mark the Synchronizer and sleeve.
2. Remove the 1st/2nd synchronizer sleeve and detents.
- Inspect the 1st/2nd synchronizer sleeve and detents for wear or damage. Install a new 1st/2nd synchronizer assembly as necessary.
Courtesy of FORD MOTOR COMPANY
NOTE: The center support must be pulled up evenly or damaged to the center support or transmission case can occur.

NOTE: Note the position of each synchronizer ring component before removal.

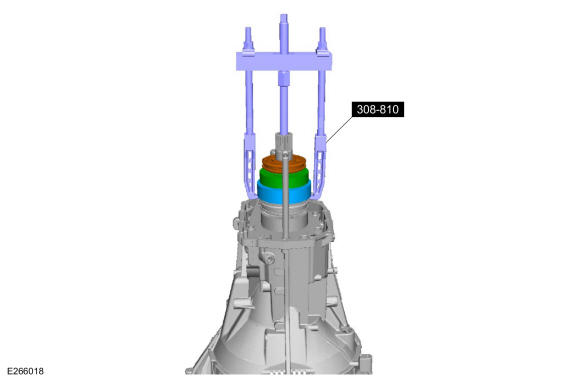

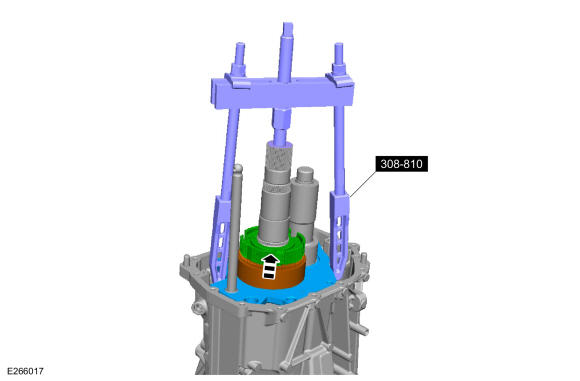

1. Using the push/puller set, step plate and special tool, remove the center support, 2nd gear and the 1st/2nd synchronizer hub. Use Special Service Tool: 308-810 Remover, Syncro Gear Pack.
- Inspect all the components for wear or damage. Install new components as necessary.
Courtesy of FORD MOTOR COMPANY
Remove the 2nd gear needle bearing.
- Inspect the 2nd gear needle bearing for wear or damage. Install a new needle bearing as necessary.
Courtesy of FORD MOTOR COMPANY
Remove the shift rail mechanism.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the shift gate.

Courtesy of FORD MOTOR COMPANY
Remove the 3rd/4th and 5th\6th shift rail.

Courtesy of FORD MOTOR COMPANY
Remove the shift shaft assembly.

Courtesy of FORD MOTOR COMPANY
Remove the magnet.

Courtesy of FORD MOTOR COMPANY
NOTE: When removing the bearings, do not over expand the bearing cages or damage to the bearing cages can occur.

Unlock the bearing cage tabs and slightly expand the bearing cages. Remove the center support bearings by sliding them up the shaft assemblies.

Courtesy of FORD MOTOR COMPANY
WARNING: Wear protective gloves when handling components or parts that have pointed or sharp edges. Failure to follow this instruction may result in serious personal injury.

NOTE: Use an assistant when pressing out the countershaft and output shaft, do not allow the shafts to bind during removal.

NOTE: The countershaft bolt must be removed prior to pressing out the countershaft or damage to the transmission case will occur.

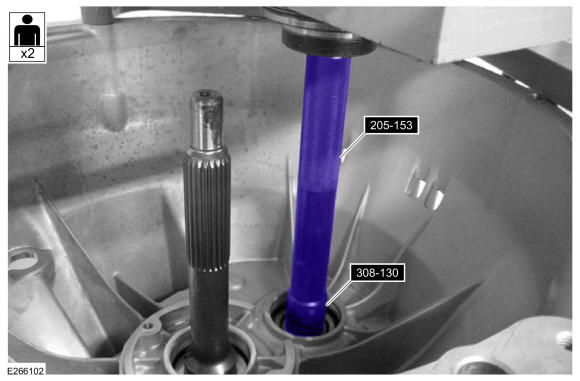

With an assistant, support the transmission case on flat surface of a hydraulic press. Using the special tools, press the countershaft out of the bearing and remove the countershaft and output shaft assemblies. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 308-130 (T87T-7025-DH) Installer, Shift Rail Needle Bearing. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
NOTE: Removal of the input shaft is only required if damage is found to the input shaft, input shaft seal or input shaft bearing. If damage is not found, no not remove the input shaft.

Remove the input shaft snap ring.

Courtesy of FORD MOTOR COMPANY
WARNING: Wear protective gloves when handling components or parts that have pointed or sharp edges. Failure to follow this instruction may result in serious personal injury.

NOTE: Use an assistant when pressing out the input shaft, do not allow the input shaft to drop during removal.

NOTE: Removal of the input shaft is only required if damage is found to the input shaft, input shaft seal or input shaft bearing. If damage is not found, no not remove the input shaft.

With an assistant, support the transmission case on flat surfaces of a hydraulic press. Using the hydraulic press, remove the input shaft. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
