Transmission Case: Assembly

WARNING: This page is about a different variant/trim than selected.
NOTE: Lubricate all components with the recommended transmission fluid before reassembling.

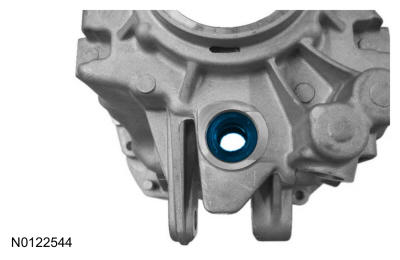

  1. If removed, install the shift shaft seal.

    Material: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

    GFD288268Courtesy of FORD MOTOR COMPANY

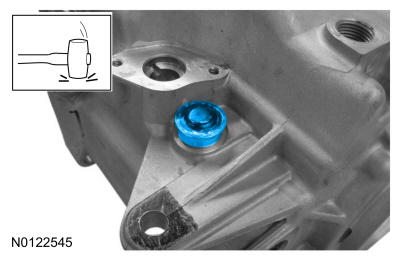

  2. If removed, use a soft-faced hammer to install the shift shaft detent.
    GFD288269Courtesy of FORD MOTOR COMPANY

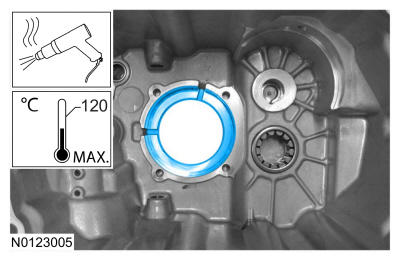

  3. NOTE: Do not heat the transmission case higher the 120°C (248°F) maximum or damage to the transmission case can occur.

    Using a heat gun, heat the transmission case to maximum of 120°C (248°F).

    GFD288270Courtesy of FORD MOTOR COMPANY

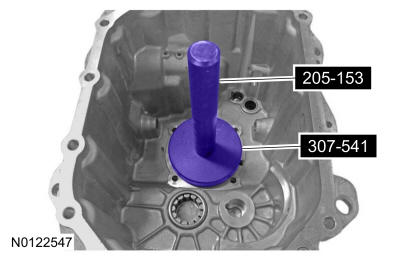

  4. NOTE: Install the output shaft bearing with the grooved side of the outer output shaft bearing race facing the inside of the transmission case or damage to the transmission case can occur.

    Using the special tools, install the output shaft bearing. Use Special Service Tool: 307-541 Installer, Transfer Gear Bearing, 205-153 (T80T-4000-W) Handle.

    GFD288271Courtesy of FORD MOTOR COMPANY

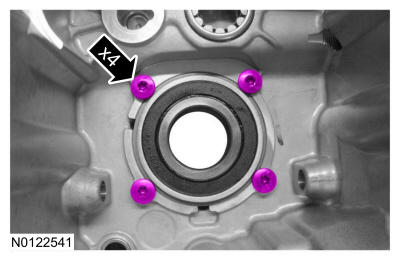

  5. Apply threadlock and install the bearing retaining bolts.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 27 lb.ft (36 Nm)

    GFD288265Courtesy of FORD MOTOR COMPANY

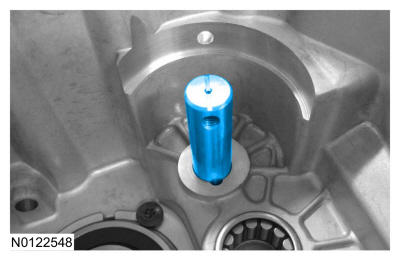

  6. Install the reverse idler gear shaft.
    GFD288272Courtesy of FORD MOTOR COMPANY

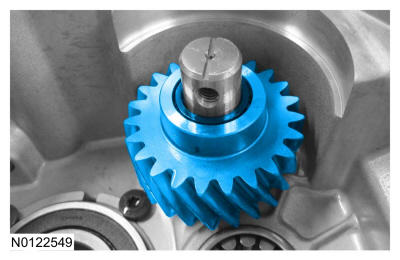

  7. Install the reverse idler gear and the reverse idler gear needle bearing.
    GFD288273Courtesy of FORD MOTOR COMPANY

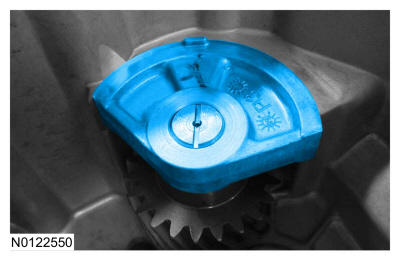

  8. Install the reverse idler gear bracket.
    GFD288274Courtesy of FORD MOTOR COMPANY

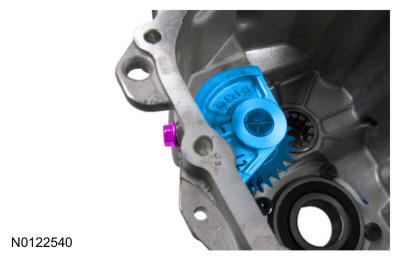

  9. Apply threadlock and install the reverse idler gear bracket bolt.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 20 lb.ft (27 Nm)

    GFD288264Courtesy of FORD MOTOR COMPANY

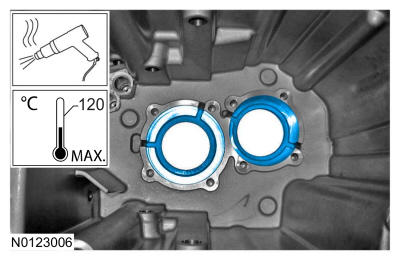

  10. NOTE: Do not heat the transmission case higher the 120°C (248°F) maximum or damage to the transmission case can occur.

    Using a heat gun, heat the transmission case to maximum of 120°C (248°F).

    GFD288275Courtesy of FORD MOTOR COMPANY

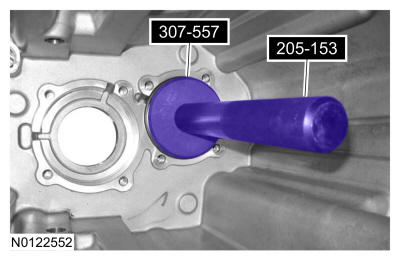

  11. Using the special tools, install the countershaft bearing. Use Special Service Tool: 307-557 Installer, Ball Bearing, 205-153 (T80T-4000-W) Handle.
    GFD288276Courtesy of FORD MOTOR COMPANY

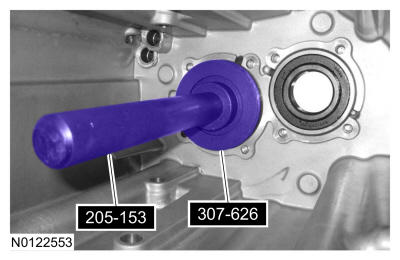

  12. NOTE: Install the input shaft bearing with the grooved side of the outer input shaft bearing race facing the inside of the transmission case or damage to the transmission case can occur.

    Using the special tools, install the input shaft bearing. Use Special Service Tool: 307-626 Installer, Differential Seal, 205-153 (T80T-4000-W) Handle.

    GFD288277Courtesy of FORD MOTOR COMPANY

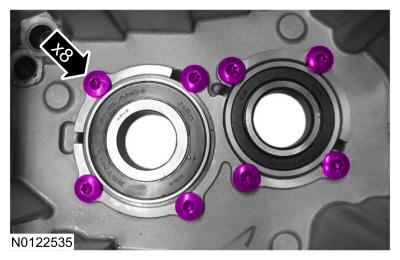

  13. Apply threadlock and install the bearing retaining bolts.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 27 lb.ft (36 Nm)

    GFD288258Courtesy of FORD MOTOR COMPANY
  14. NOTE: Before installing the vent tube, lightly coat the vent tube "O" ring with recommended transmission fluid.

    If removed, install the transmission case vent tube with the notch pointing to the front of the transmission case.

    GFD288278Courtesy of FORD MOTOR COMPANY

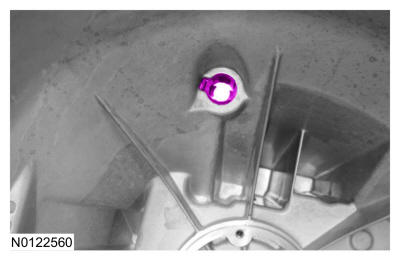

  15. If removed, install the clutch slave cylinder tube retaining clip.
GFD288261Courtesy of FORD MOTOR COMPANY
