Disassembly And Assembly Of Subassemblies: Synchronizers: Assembly

WARNING: This page is about a different variant/trim than selected.

NOTE: 3rd/4th gear only.

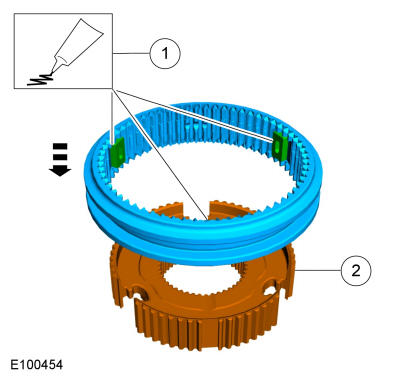

1. Use grease to hold the endstops to the synchronizer sleeve.
  Material: Motorcraft® High Temperature 4x4 Front Axle and Wheel Bearing Grease / XG-11 (WSS-M1C267-A1)
2. Install the synchronizer sleeve on the synchronizer hub.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the components are installed in their original positions.

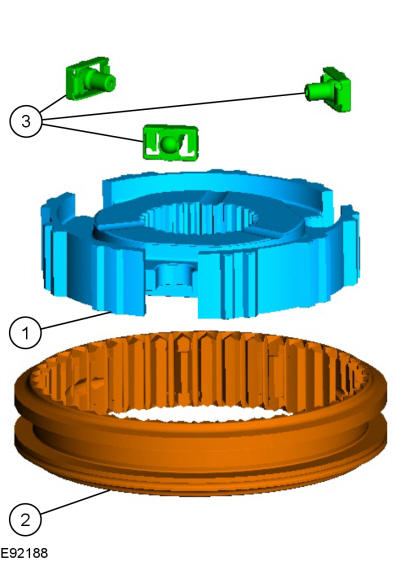

1. Synchronizer hub.
2. Synchronizer sleeve.
3. Pressure pieces.

Courtesy of FORD MOTOR COMPANY
