Output Shaft - 2.3L EcoBoost (231kW/314PS): Disassembly
WARNING: This page is about a different variant/trim than selected.
NOTE:
Hand-tighten the Bearing Separator to prevent gear damage.
NOTE:
Support the output shaft while using the press to prevent damage to the shaft or gears.
- Remove the 5th/6th gear synchronizer assembly snap ring.

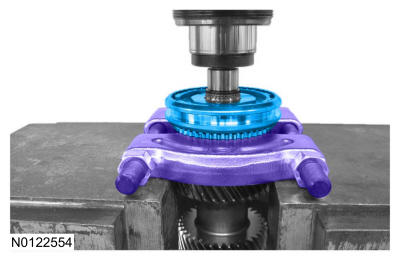

- Using the bearing separator and a hydraulic press, remove the 5th/6th gear synchronizer assembly.
- Inspect the 5th/6th gear synchronizer assembly and the 6th gear synchronizer ring and cone for wear or damage. Install new components as necessary. Use the General Equipment: Bearing Separator. Use the General Equipment: Hydraulic Press
- Remove the 6th gear.
- Inspect the 6th gear for wear or damage. Install a new gear as necessary.
- Remove the 6th gear needle bearing.
- Inspect the 6th gear needle bearing for wear or damage. Install a new needle bearing as necessary.
- Inspect the output shaft for scoring or worn or damaged splines. Install a new output shaft as necessary.
