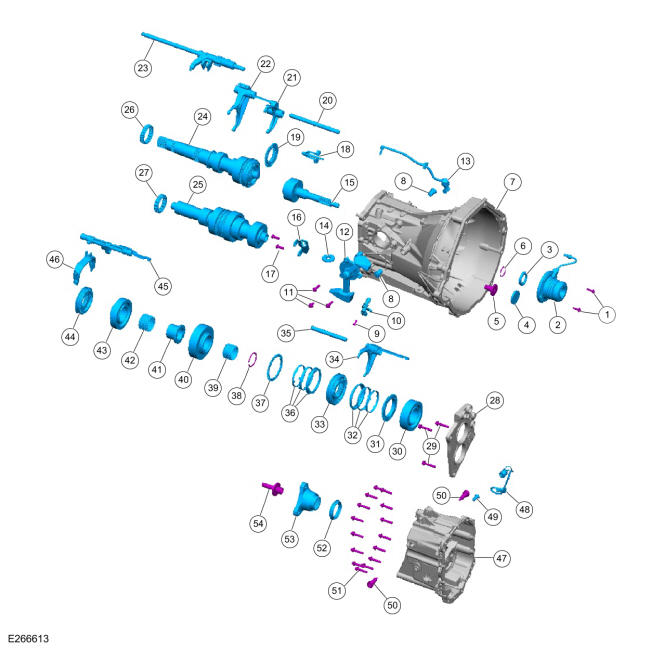

Transmission Exploded View (Vehicles equipped with an 5.0L engine)
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Clutch slave cylinder bolt (2 required) |
| 2 | Clutch slave cylinder |
| 3 | Input shaft seal |
| 4 | Countershaft bolt cover |
| 5 | Countershaft bolt |
| 6 | Input shaft snap ring |
| 7 | Front transmission case assembly |
| 8 | Shift shaft detents (2 required) |
| 9 | OSS sensor bolt |
| 10 | OSS sensor |
| 11 | Shift shaft dampener bolts (3 required) |
| 12 | Shift shaft dampener |
| 13 | Transmission case vent tube |
| 14 | Magnet |
| 15 | Input shaft |
| 16 | Shift shaft gate |
| 17 | Shift shaft gate bolts (2 required) |
| 18 | Shift fork pivot |
| 19 | 4th gear synchronizer cone |
| 20 | 3rd/4th 5th/6th shift fork rail |
| 21 | 3rd/4th shift fork |
| 22 | 5th/6th shift fork |
| 23 | shift shaft assembly |
| 24 | Output shaft |
| 25 | Counter shaft |
| 26 | Center support bearing (output shaft) |
| 27 | Center support bearing (countershaft) |
| 28 | Center support |
| 29 | Center support bolts (3 required) |
| 30 | 2nd gear |
| 31 | 2nd gear synchronizer cone |
| 32 | 2nd gear synchronizer ring assembly |
| 33 | 1st/2nd gear synchronizer assembly |
| 34 | 1st/2nd shift fork |
| 35 | 1st/2nd shift rail |
| 36 | 1st gear synchronizer ring assembly |
| 37 | 1st gear synchronizer cone |
| 38 | 1st/2nd gear synchronizer assembly circlip |
| 39 | 1st gear needle bearing |
| 40 | 1st gear |
| 41 | Reverse gear needle bearing race |
| 42 | Reverse gear needle bearing |
| 43 | Reverse gear |
| 44 | Reverse gear synchronizer assembly |
| 45 | Reverse shift rail |
| 46 | Reverse shift fork |
| 47 | Rear transmission case assembly |
| 48 | Reverse lamp switch |
| 49 | Reverse shift rail detent |
| 50 | Reverse shift fork pivot bolts (2 required) |
| 51 | Transmission case bolts |
| 52 | Output shaft seal |
| 53 | Output shaft flange |
| 54 | Output shaft flange bolt |
