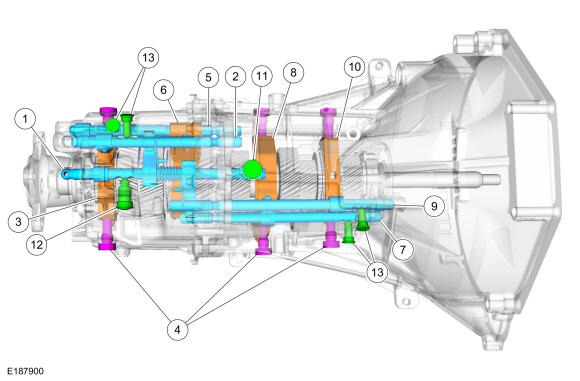

Internal Gearshift Mechanism (Vehicles equipped with an 2.3L engine)
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Shift shaft assembly |
| 2 | Reverse shift rail |
| 3 | Reverse shift fork |
| 4 | Shift fork pivot bolts |
| 5 | 1st/2nd shift rail |
| 6 | 1st/2nd shift fork |
| 7 | 3rd/4th shift rail |
| 8 | 3rd/4th shift fork |
| 9 | 5th/6th shift rail |
| 10 | 5th/6th shift fork |
| 11 | Shift shaft stop pin |
| 12 | Shift shaft detent |
| 13 | Shift rail detents |
