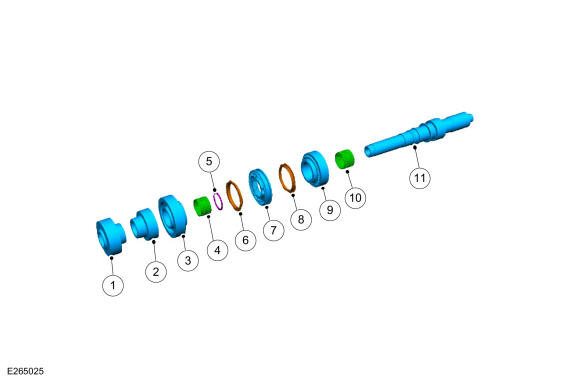

Counter Shaft (Vehicles equipped with an 5.0L engine)
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
4th gear |
| 2 |
3rd gear |
| 3 |
6th gear |
| 4 |
6th gear needle bearing |
| 5 |
3rd gear synchronizer ring assembly |
| 6 |
6th/5th gear synchronizer assembly snap ring |
| 7 |
6th/5th gear synchronizer assembly |
| 8 |
5th gear synchronizer ring assembly |
| 9 |
5th gear |
| 10 |
5th gear needle bearing |
| 11 |
Countershaft |
