Vehicles equipped with 2.3L
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Transmission vent |
| 2 | Shift rail detents |
| 3 | Shift shaft stop pin |
| 4 | Reverse lamp switch |
| 5 | 5th/6th gear shift fork pivot bolt |
| 6 | 3rd/4th gear shift fork pivot bolt |
| 7 | Reverse shift fork pivot bolt |
| 8 | Reverse idler gear bracket bolt |

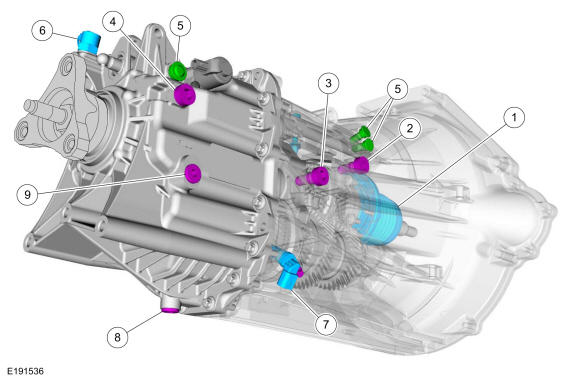

Vehicles equipped with 2.3L
| Item | Description |
|---|---|
| 1 | Clutch slave cylinder |
| 2 | 5th/6th gear shift fork pivot bolt |
| 3 | 3rd/4th gear shift fork pivot bolt |
| 4 | Reverse shift fork pivot bolt |
| 5 | Shift rail detents |
| 6 | Reverse lamp switch |
| 7 | OSS sensor |
| 8 | Drain plug |
| 9 | Fill plug |
