Transmission - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS)

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle
Courtesy of FORD MOTOR COMPANY	308-806 Installer, Front Seal TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW
Courtesy of FORD MOTOR COMPANY	308-808 Installer, Rear Flange TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW
Courtesy of FORD MOTOR COMPANY	308-809 Installer, Syncro Gear Pack TKIT-2010A-ROW
Courtesy of FORD MOTOR COMPANY	308-811 Installer, Rear Seal TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW
Courtesy of FORD MOTOR COMPANY	308-938 Remover/Installer, Companion Flange Nut TKIT-2014D-ROW2 TKIT-2014D-FL_ROW

Materials

Name	Specification
Motorcraft® Threadlock 262 TA-26	WSK-M2G351-A6
Motorcraft® Gasket Maker TA-16	WSK-M2G348-A5
Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC	WSS-M2C200-D2

Lubricate all components with the recommended transmission fluid before assembling.
Material: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)
NOTE: Do not heat the input shaft bearing higher than 120°C (248°F) maximum or damage to the input shaft bearing can occur.

Using a heat gun, heat the input shaft bearing inner race to a maximum of 120°C (248°F).

Courtesy of FORD MOTOR COMPANY
Install the input shaft.

Courtesy of FORD MOTOR COMPANY
Install the input shaft snap ring.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the small diameter side of the output shaft roller bearing cage is facing the input shaft or damage to the output shaft bearing can occur.

With the small diameter side of the output shaft roller bearing cage facing the input shaft, install the output shaft roller bearing.

Courtesy of FORD MOTOR COMPANY

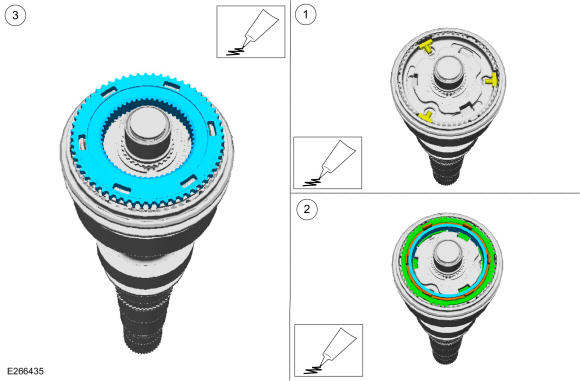

NOTE: Apply petroleum jelly to hold the 5th gear synchronizer ring and the 5th gear synchronizer cone in place during assembly.
- Apply petroleum jelly and install the 3rd/4th gear synchronizer detents.
- Apply petroleum jelly and install the 4th gear synchronizer rings.
- Apply petroleum jelly and install the 3rd/4th gear synchronizer cone.
Courtesy of FORD MOTOR COMPANY

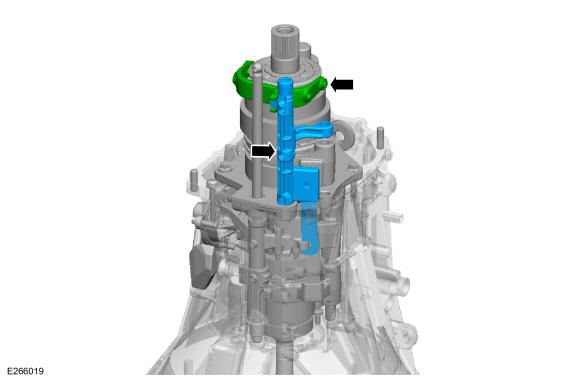

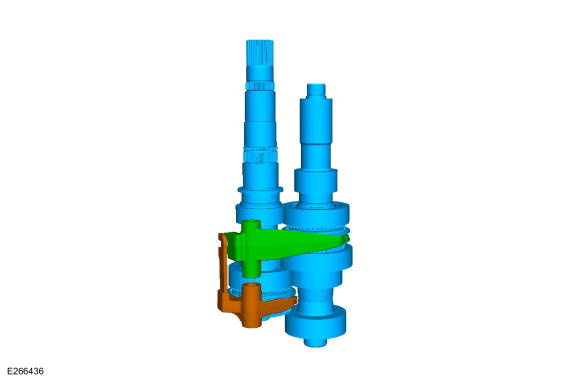

Assemble the output shaft, countershaft assemblies and the 3rd/4th and 5th/6th shift forks.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not heat the countershaft bearing higher than 120°C (248°F) maximum or damage to the countershaft bearing can occur.

Using a heat gun, heat the countershaft bearing inner race to a maximum of 120°C (248°F).

Courtesy of FORD MOTOR COMPANY

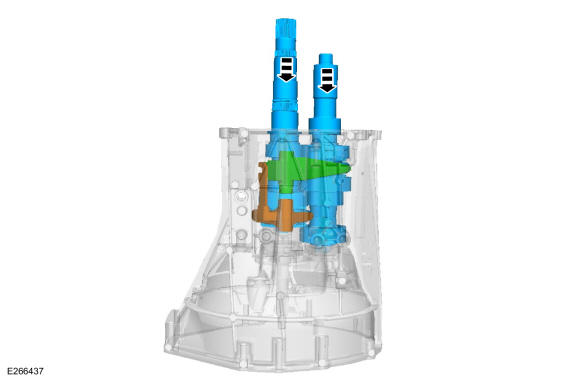

Install the output shaft and countershaft assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: If the output shaft or countershaft are not fully seated, difficulty assembling the transmission, excessive shift effort, noise or damage to the transmission after assembly can occur.

Inspect the output shaft and countershaft to be sure they are fully installed. Compare the depth of the rear 4th gear surface to the deck surface of the transmission case and compare the depth of the countershaft to the countershaft front bearing.
1. The rear surface of 4th gear should be 25.4 mm - 38.1 mm (1 in - 1.5 in) below the transmission case deck surface.
2. The front countershaft surface should be 0.635 mm - 1.905 mm (0.025 in - 0.075 in) deeper then the front countershaft bearing.
Courtesy of FORD MOTOR COMPANY
Install the shift shaft assembly.

Courtesy of FORD MOTOR COMPANY
Install the 3rd/4th and 5th\6th shift rail.

Courtesy of FORD MOTOR COMPANY

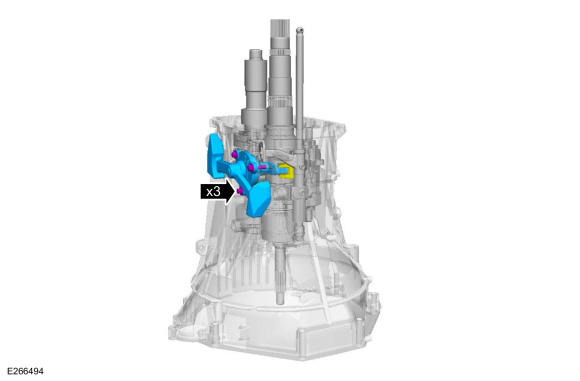

Install the shift gate and the bolts.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY
Install the shift rail mechanism.

Courtesy of FORD MOTOR COMPANY
NOTE: When installing the bearings, do not over expand the bearing cages or damage to the bearing cages can occur.

Slightly expand the center support bearing cages and slide the center support bearings down the shaft assemblies. Lock the bearing cage tabs.

Courtesy of FORD MOTOR COMPANY

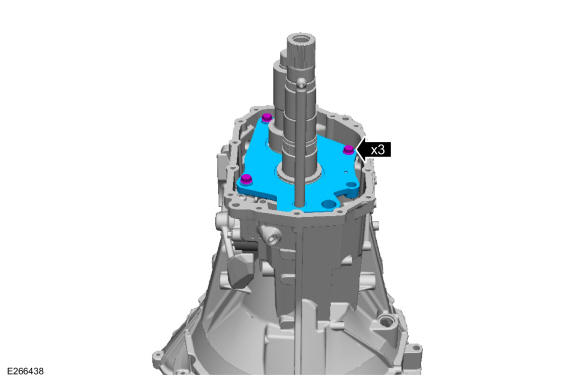

Loosely install the center support and finger tighten the bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Install the countershaft bolt with the transmission in the vertical position with the input shaft facing down.

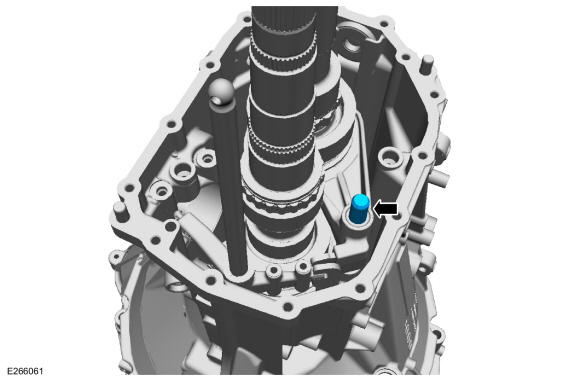

Apply threadlock and install the countershaft bolt.

Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

Torque: 70 lb.ft (95 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The center support must be tightened evenly or damage to the center support or transmission case can occur.

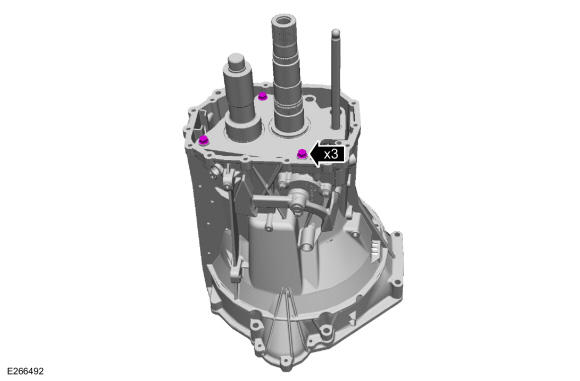

Apply threadlock to the center support bolts and evenly tighten the center support bolts.

Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

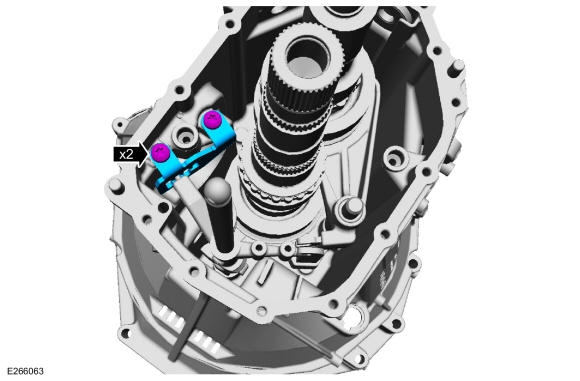

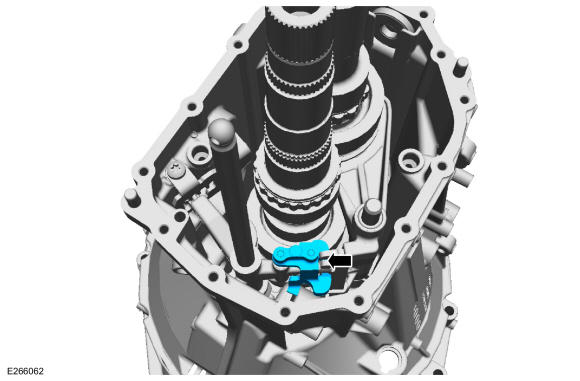

Install the shift shaft dampener and bolts.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY
Install the 2nd gear needle bearing.

Courtesy of FORD MOTOR COMPANY

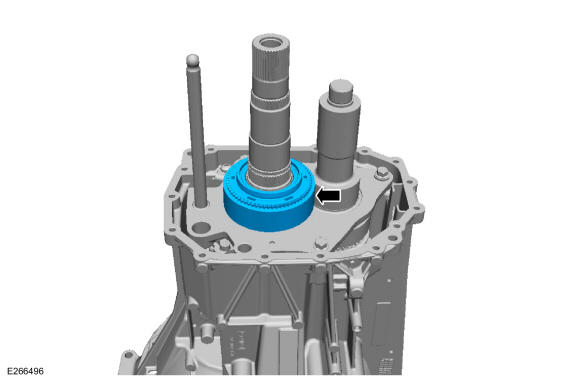

Install the 2nd gear.

Courtesy of FORD MOTOR COMPANY
NOTE: The synchronizer ring tabs must engage into the gear slots or damage to the synchronizer ring assembly can occur.

Install the 2nd gear synchronizer ring assembly.

Courtesy of FORD MOTOR COMPANY

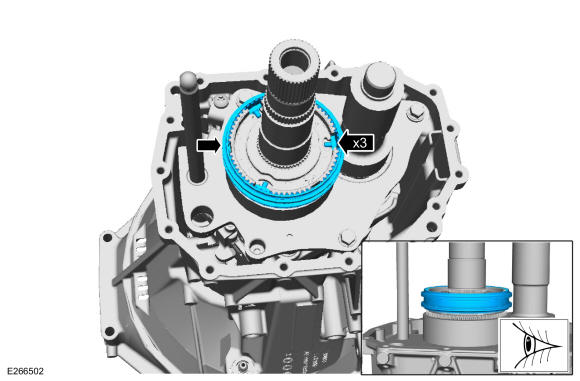

NOTE: The 3 synchronizer ring tabs must engage into the 3 synchronizer hub slots or damage to the synchronizer hub and the synchronizer ring assembly can occur.

NOTE: The long shoulder of the 1st/2nd synchronizer hub must be facing 2nd gear or damage to the synchronizer hub can occur.

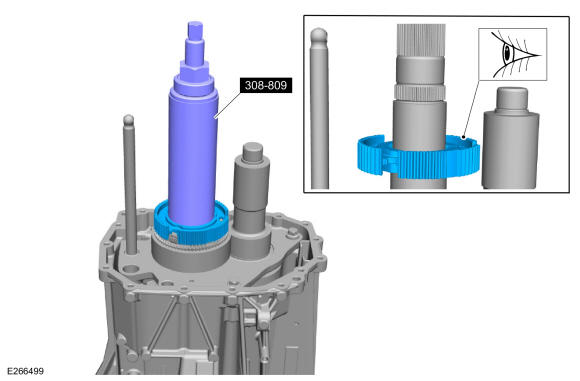

With the long shoulder of the 1st/2nd synchronizer hub must be facing 2nd gear, use the special tool and install the 1st/2nd synchronizer hub. Use Special Service Tool: 308-809 Installer, Syncro Gear Pack.

Courtesy of FORD MOTOR COMPANY
NOTE: The synchronizer sleeve is installed with the groove toward 2nd gear.

NOTE: Slide the synchronizer sleeve up to install the pressure pieces.

Install the synchronizer sleeve and the 3 synchronizer detents.

Courtesy of FORD MOTOR COMPANY
NOTE: The synchronizer ring tabs must engage into the gear slots or damage to the synchronizer ring assembly can occur.

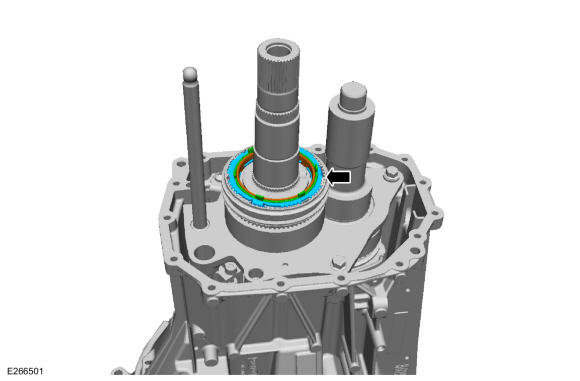

Install the 1st gear synchronizer ring assembly.

Courtesy of FORD MOTOR COMPANY

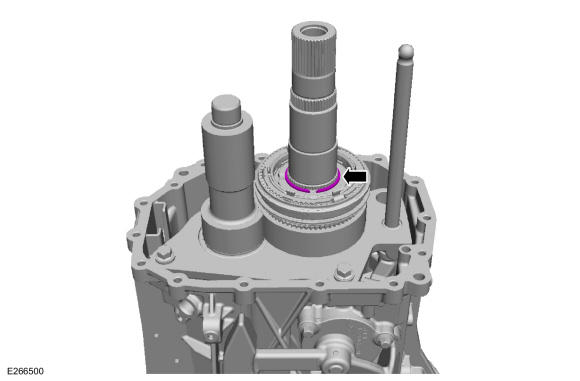

Install the 1st/2nd synchronizer hub snap ring.

Courtesy of FORD MOTOR COMPANY

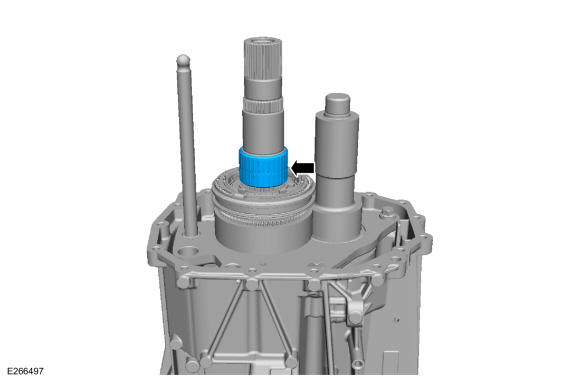

Install the 1st gear needle bearing.

Courtesy of FORD MOTOR COMPANY
NOTE: The synchronizer ring tabs must engage into the gear slots or damage to the synchronizer assembly and synchronizer ring assembly can occur.

Install the 1st gear.

Courtesy of FORD MOTOR COMPANY

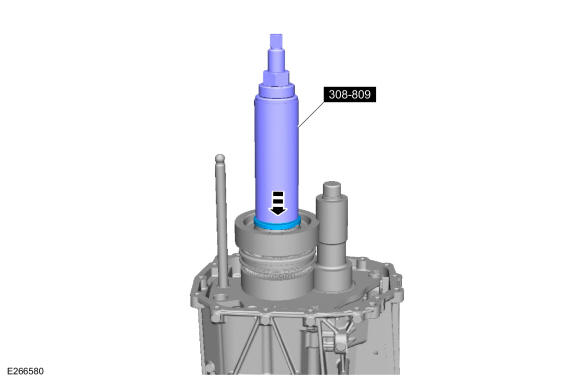

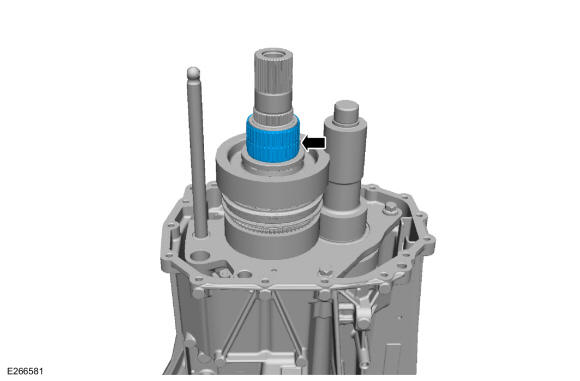

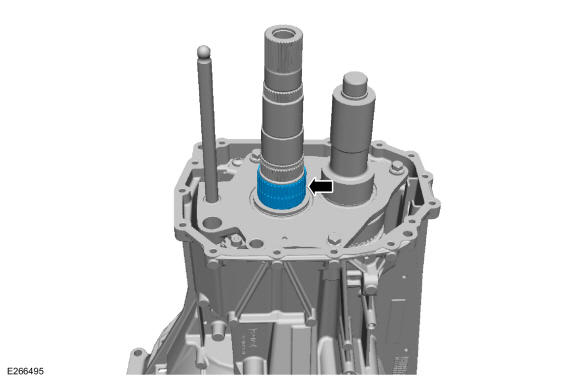

Using the special tool, install the reverse gear needle bearing race. Use Special Service Tool: 308-809 Installer, Syncro Gear Pack.

Courtesy of FORD MOTOR COMPANY
Install the reverse gear needle bearing.

Courtesy of FORD MOTOR COMPANY

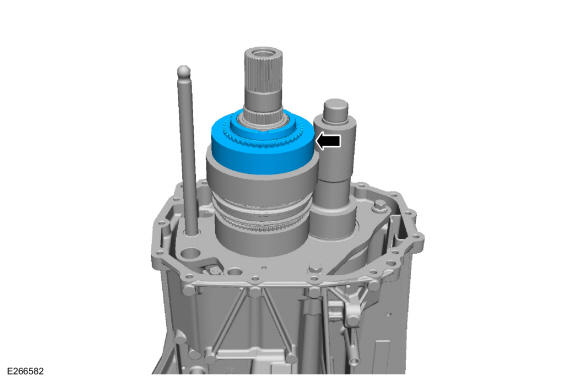

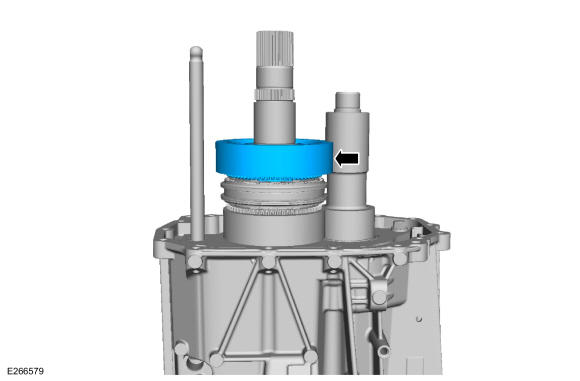

Install the reverse gear.

Courtesy of FORD MOTOR COMPANY

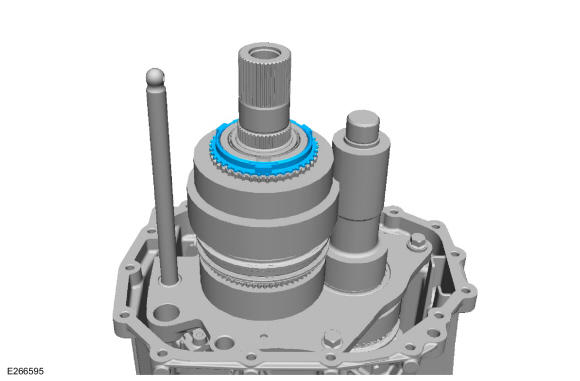

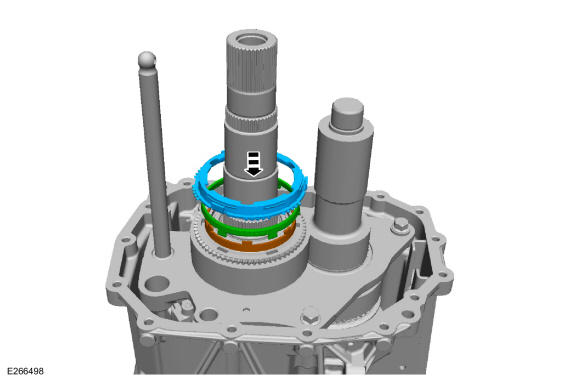

Install the reverse gear synchronizer rings.

Courtesy of FORD MOTOR COMPANY
NOTE: The 3 synchronizer ring tabs must engage into the 3 synchronizer assembly slots or damage to the synchronizer assembly and the synchronizer ring can occur.

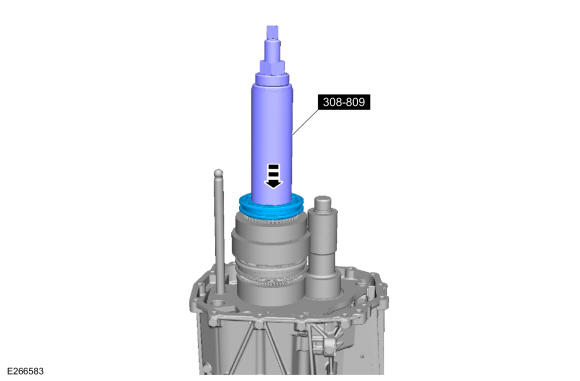

Using the special tool, install the reverse gear synchronizer assembly. Use Special Service Tool: 308-809 Installer, Syncro Gear Pack.

Courtesy of FORD MOTOR COMPANY

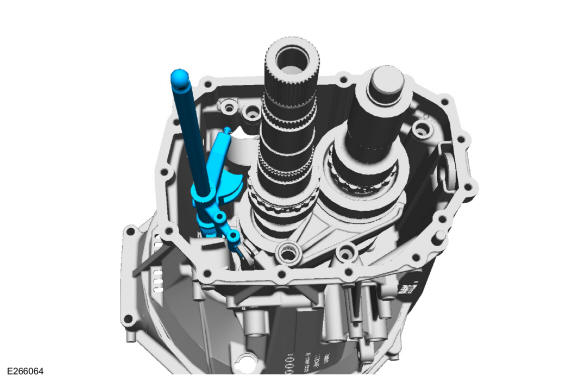

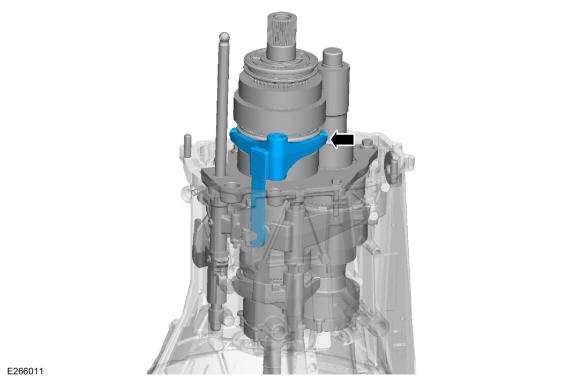

Install the 1st/2nd shift fork.

Courtesy of FORD MOTOR COMPANY
Install the reverse shift fork and the reverse shift rail assembly.

Courtesy of FORD MOTOR COMPANY

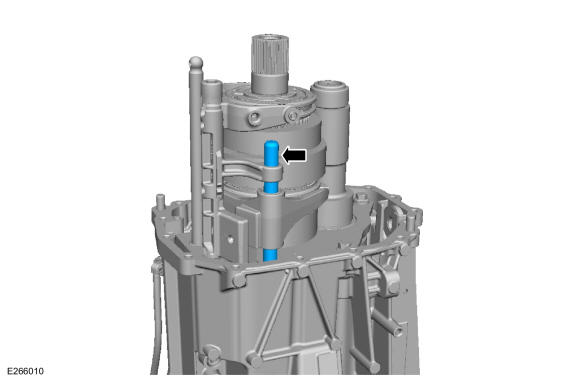

Install the 1st\2nd and reverse shift rail.

Courtesy of FORD MOTOR COMPANY

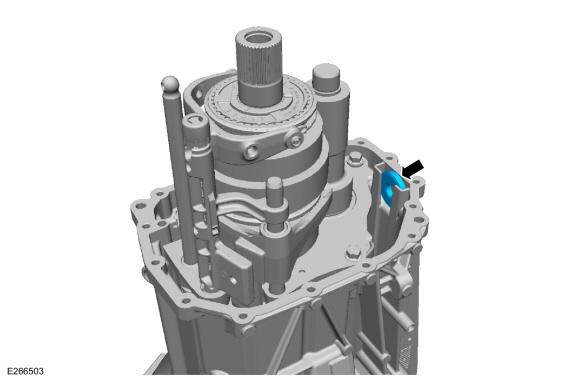

Install the internal case magnet.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY
NOTE: Art shown with internal components removed for clarity.

NOTE: Do not wait longer than 10 minutes to install the rear transmission case assembly due to rapid cure of the sealant.

Clean the sealing surfaces of the front transmission case and the sealing surfaces of the rear transmission case. Thinly coat the sealing surface of the front transmission case assembly and the sealing surface of the rear transmission case assembly with gasket maker.

Material: Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

Courtesy of FORD MOTOR COMPANY
NOTE: The rear transmission case assembly must be installed evenly with the transmission shifted into 4th gear, do not allow the shift rails to bind during installation or damage to the transmission case assembly can occur.

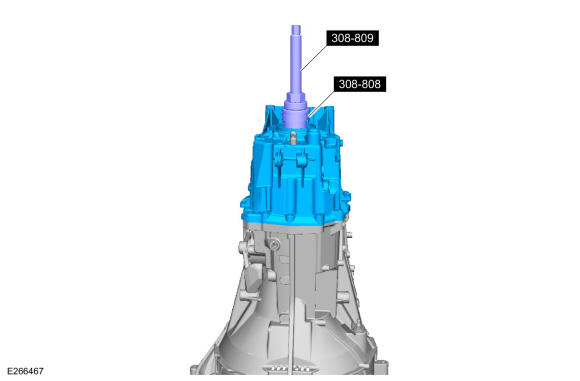

Using the special tools, install the rear transmission case assembly. Use Special Service Tool: 308-809 Installer, Syncro Gear Pack, 308-808 Installer, Rear Flange.

Courtesy of FORD MOTOR COMPANY
Loosely install the bolts.

Courtesy of FORD MOTOR COMPANY

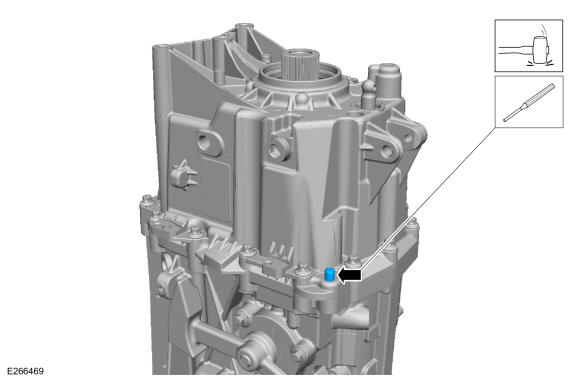

Using a brass drift, tap the dowel pins flush with the transmission case.

Courtesy of FORD MOTOR COMPANY

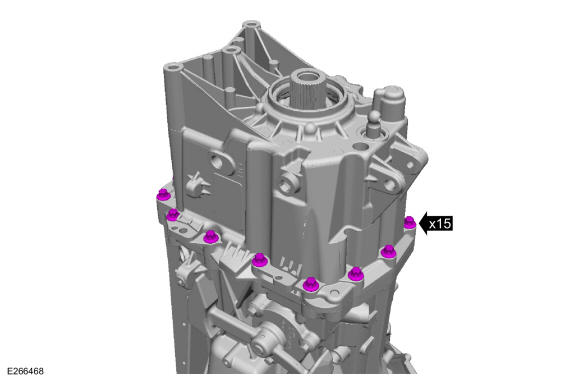

Tighten the transmission case bolts.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

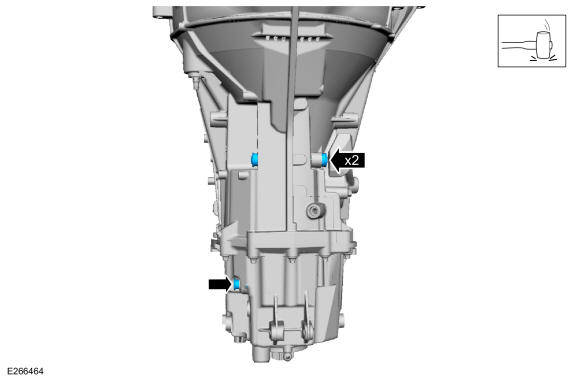

Using a soft-faced hammer install the 4 shift rail detents.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the shift fork pivot bolts engage into the shift fork or damage to the shift fork can occur.

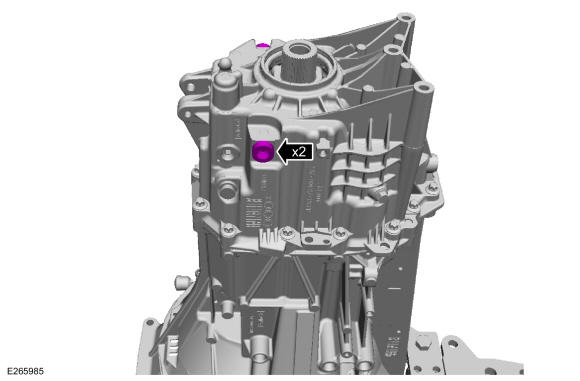

Apply threadlock and sealer and install the LH and RH reverse gear shift fork pivot bolts.

Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

Torque: 27 lb.ft (37 Nm)

Courtesy of FORD MOTOR COMPANY

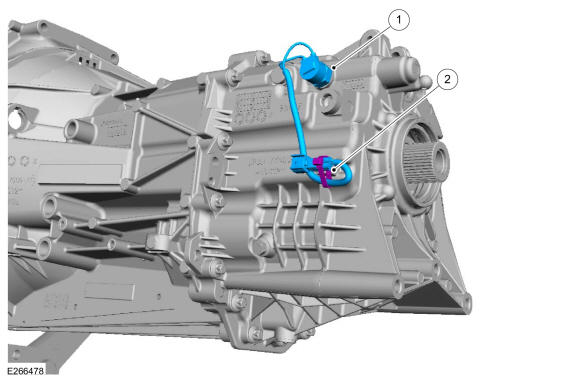

1. Install the reverse lamp switch.
  Torque: 177 lb.in (20 Nm)
2. Attach the electrical connector retainer.
Courtesy of FORD MOTOR COMPANY

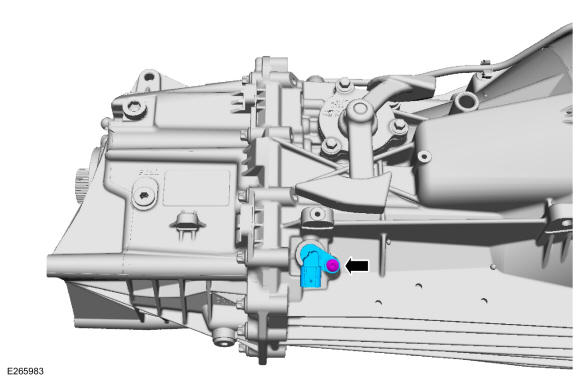

Install the OSS sensor and the bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the transmission breather assembly.

Courtesy of FORD MOTOR COMPANY
Install a new output shaft seal on the special tools. Use Special Service Tool: 308-811 Installer, Rear Seal, 205-153 (T80T-4000-W) Handle.

Courtesy of FORD MOTOR COMPANY
Using the special tools, install the output shaft seal. Use Special Service Tool: 308-811 Installer, Rear Seal, 205-153 (T80T-4000-W) Handle.

Courtesy of FORD MOTOR COMPANY
Using the special tools, install the output shaft flange. Use Special Service Tool: 308-809 Installer, Syncro Gear Pack, 308-808 Installer, Rear Flange.

Courtesy of FORD MOTOR COMPANY
Clean the threads on the output shaft bolt and apply one dot of threadlock to the lower end of the output shaft bolt threads. Using the special tools, install the output shaft flange bolt and tighten in 3 stages. Use Special Service Tool: 308-938 Remover/Installer, Companion Flange Nut.
Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

Torque: Stage 1: 148 lb.ft (200 Nm) Stage 2: Loosen: 5 turn(s) Stage 3: 133 lb.ft (180 Nm)

Courtesy of FORD MOTOR COMPANY
Install the countershaft bolt cover in the clutch housing. Using the special tools, drive the countershaft bolt cover into the clutch housing. Use Special Service Tool: 308-811 Installer, Rear Seal, 205-153 (T80T-4000-W) Handle.

Courtesy of FORD MOTOR COMPANY

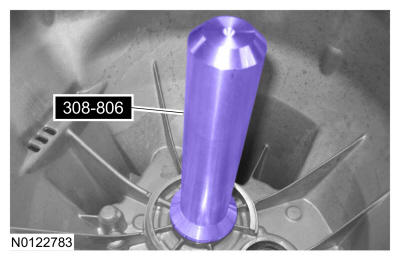

Using the special tool, install the new input shaft seal. Use Special Service Tool: 308-806 Installer, Front Seal.

Courtesy of FORD MOTOR COMPANY

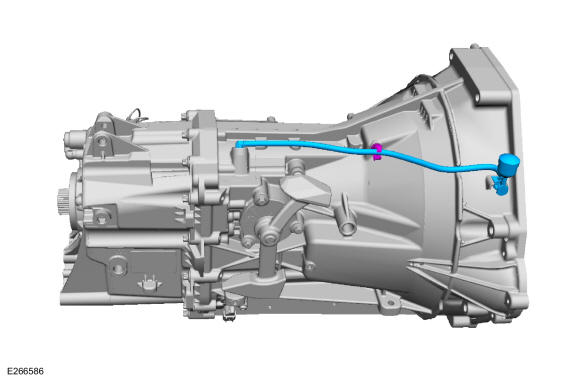

1. Position the clutch slave cylinder and if equipped, the clutch slave cylinder spacer and connect the tube in the retaining clip.
2. Install the 2 bolts.
  Torque: 97 lb.in (11 Nm)
