Gearshift Lever: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Rotate the gearshift knob counterclockwise and remove the gearshift knob.
    GFD288543Courtesy of FORD MOTOR COMPANY
  3. Using an interior trim remover, release the gearshift lever boot from the floor console starting at the front sides and moving rearward. Use the General Equipment: Interior Trim Remover
    multimedia:A supplement to the article is available.
    GFD288544Courtesy of FORD MOTOR COMPANY
  4. Release the retainers and remove the gearshift lever boot.
    GFD288545Courtesy of FORD MOTOR COMPANY
  5. Remove the driveshaft. Refer to: Driveshaft .

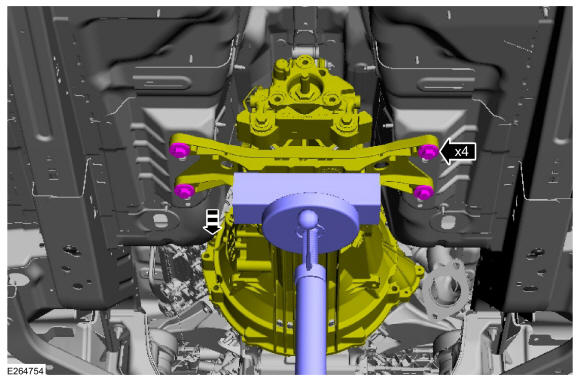

  6. Support the crossmember with a wood block and a jack stand, remove the crossmember bolts and lower the transmission. Use the General Equipment: Vehicle/Axle Stands. Use the General Equipment: Wooden Block
    GFD288546Courtesy of FORD MOTOR COMPANY
  7. Remove the gearshift lever nuts.
    GFD288547Courtesy of FORD MOTOR COMPANY

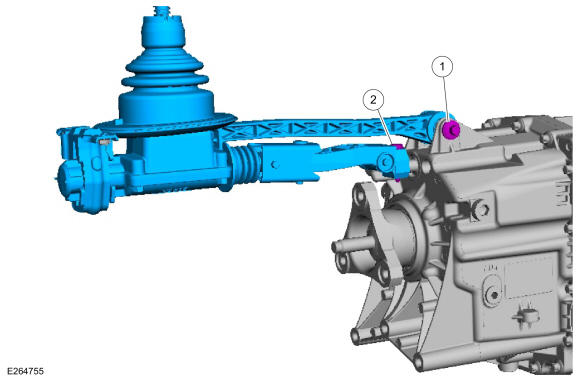

  8. Remove the gearshift lever assembly.

    1. Remove the gearshift lever-to-transmission bolt.
    2. Remove the gearshift lever bolt.
    3. Remove the gearshift lever assembly from the transmission by pulling towards the rear of the vehicle.

GFD288548Courtesy of FORD MOTOR COMPANY
