Gearshift Lever: Installation

WARNING: This page is about a different variant/trim than selected.

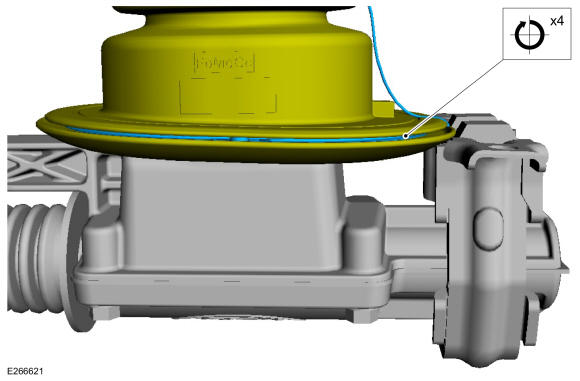

Wrap a string around the gearshift lever boot in the groove between the rubber sealing lips.

Courtesy of FORD MOTOR COMPANY

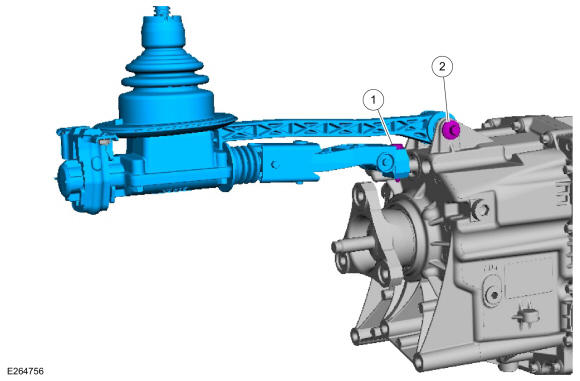

Install the gearshift lever assembly.
1. Install the gearshift lever bolt.
  Torque: 133 lb.in (15 Nm)
2. Install the gearshift lever-to-transmission bolt.
  Torque: 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY

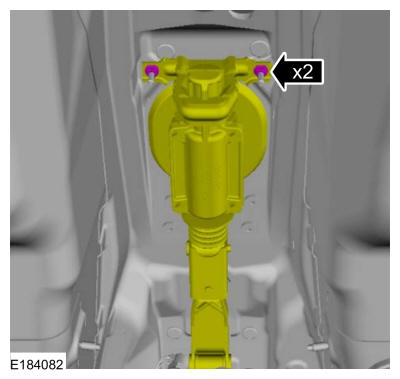

Install the gearshift lever nuts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

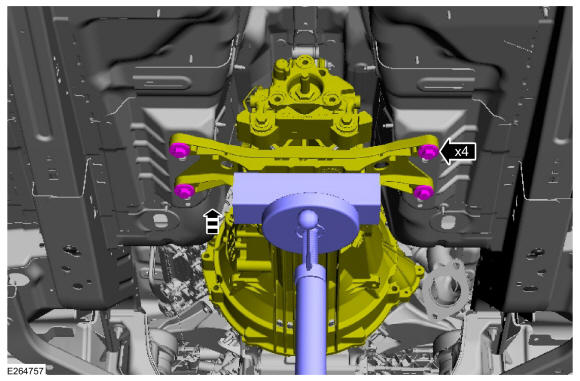

Raise the transmission, install the crossmember bolts and remove the jack stand and wood block. Use the General Equipment: Vehicle/Axle Stands. Use the General Equipment: Wooden Block
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
Install the driveshaft. Refer to: Driveshaft .

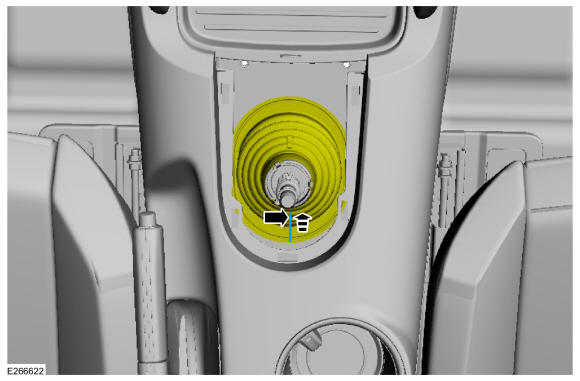

Unwrap the string from the groove in the shifter boot to sandwich the floor sheet metal in the sealing lips of the rubber boot.

Courtesy of FORD MOTOR COMPANY

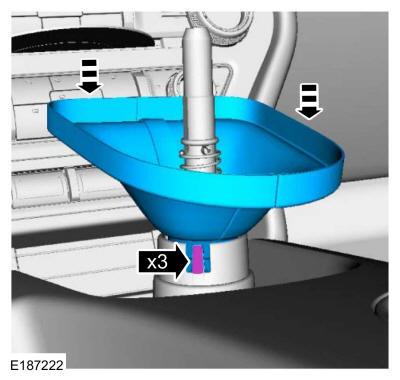

Install the gearshift lever boot and attach the retainers.

Courtesy of FORD MOTOR COMPANY

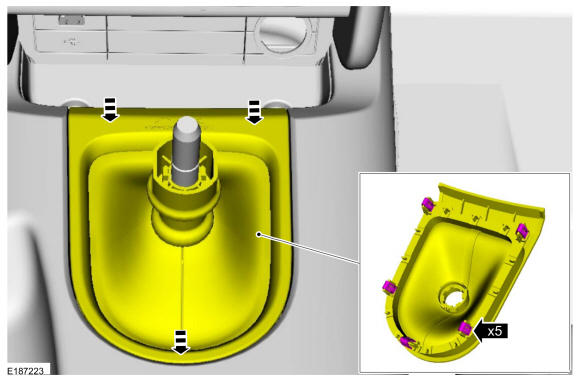

Install the gearshift lever boot to the floor console.

Courtesy of FORD MOTOR COMPANY

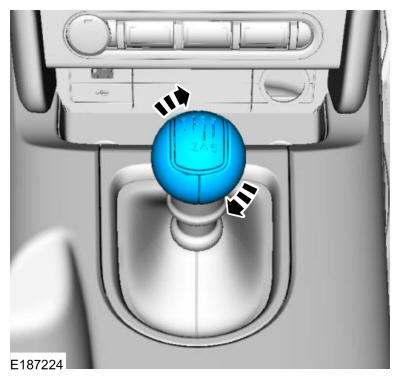

Install the gearshift knob.

Courtesy of FORD MOTOR COMPANY
