Gearshift Lever Boot: Removal

WARNING: This page is about a different variant/trim than selected.

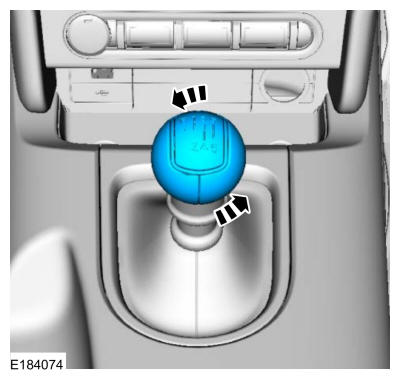

Rotate the gearshift knob counterclockwise and remove the gearshift knob.

Courtesy of FORD MOTOR COMPANY

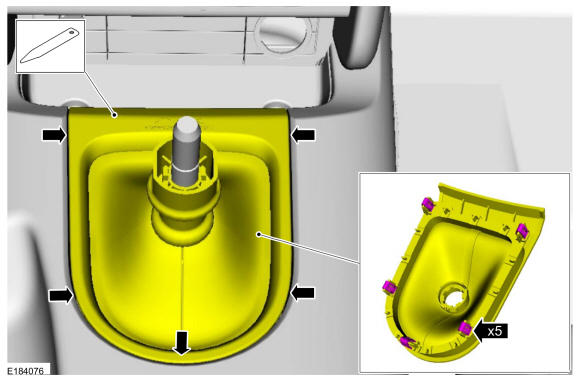

Using an interior trim remover, release the gearshift lever boot from the floor console starting at the front sides and moving rearward. Use the General Equipment: Interior Trim Remover
multimedia:A supplement to the article is available.

Courtesy of FORD MOTOR COMPANY

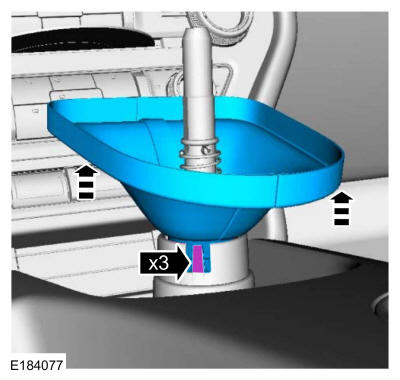

Release the retainers and remove the gearshift lever boot.

Courtesy of FORD MOTOR COMPANY
