Vehicle Speed Sensor (VSS): Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the VSS and the VSS bolt.

    Torque: 71 lb.in (8 Nm)

    GFD288396Courtesy of FORD MOTOR COMPANY

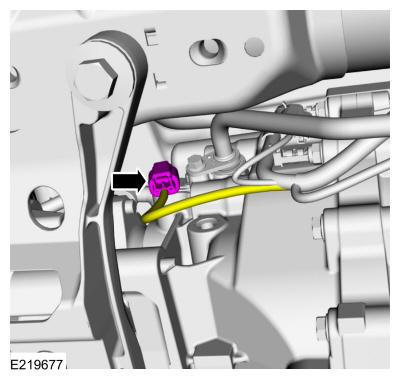

  2. Connect the VSS electrical connector.
GFD288397Courtesy of FORD MOTOR COMPANY
