Transmission Fluid Temperature (TFT) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-
NOTE: If disassembly of the transmission is required, drain the transmission fluid.

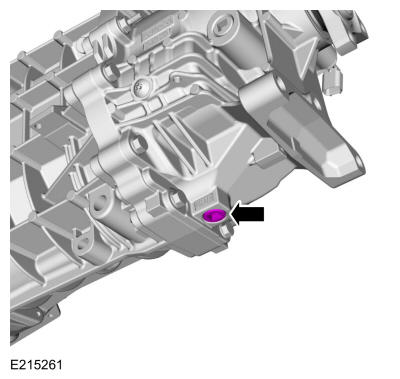

Remove the drain plug and drain the transmission fluid.
Torque: 21 lb.ft (28 Nm)

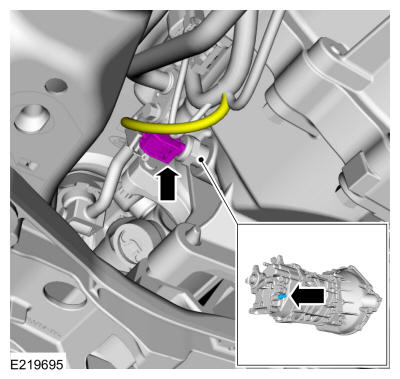

- Disconnect the TFT sensor electrical connector.
- Remove the TFT sensor.
