Transmission Case: Disassembly

WARNING: This page is about a different variant/trim than selected.

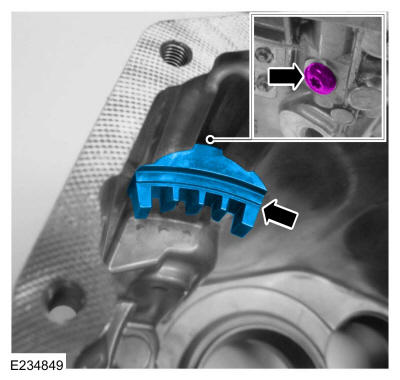

  1. Remove the bolt and the guide plate.
    GFD288506Courtesy of FORD MOTOR COMPANY

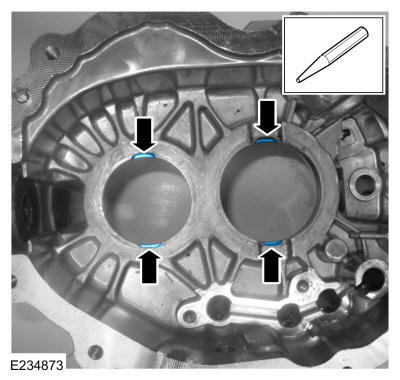

  2. Using a drift, drive the bearing races out of the transmission case. Use the General Equipment: Punch
GFD288507Courtesy of FORD MOTOR COMPANY
