Extension Housing: Disassembly
WARNING: This page is about a different variant/trim than selected.

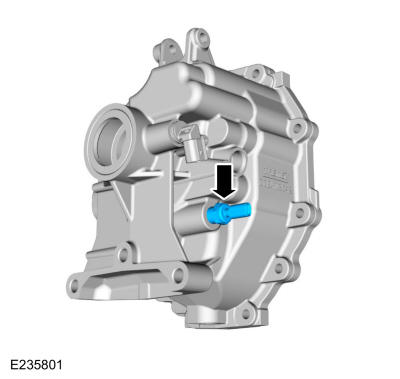

- If equipped, remove the TFT sensor.

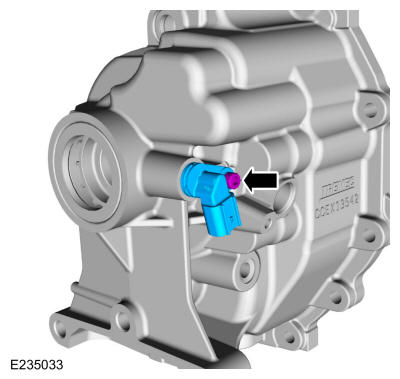

- Remove the bolt and the speed sensor.

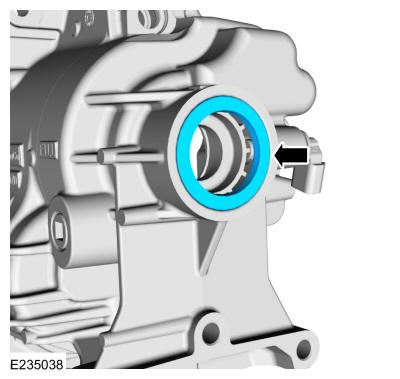

- Remove the output shaft seal.

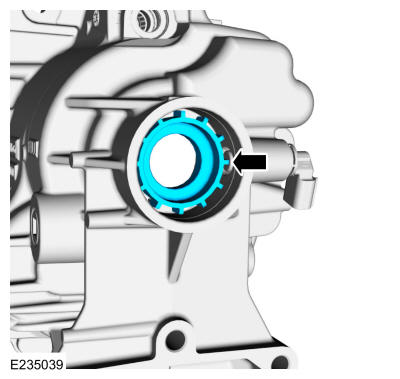

- Remove the tone wheel.

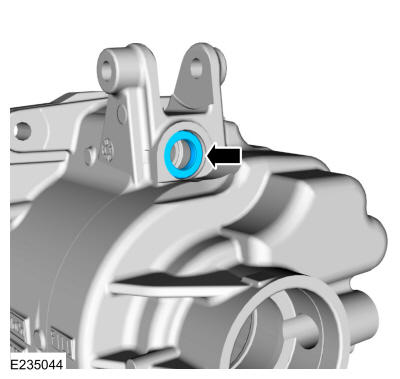

- Remove the manual shaft seal.

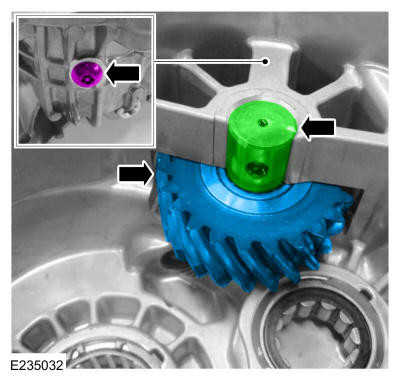

- Remove the bolt, the reverse gear pin and reverse idler gear.

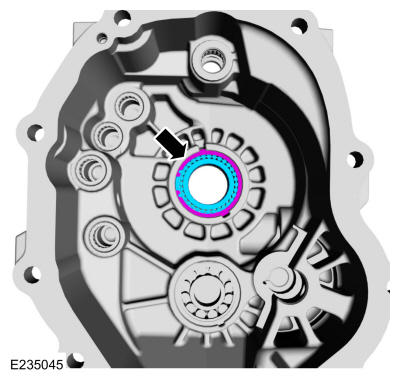

- Remove the retaining ring and the output shaft bearing.

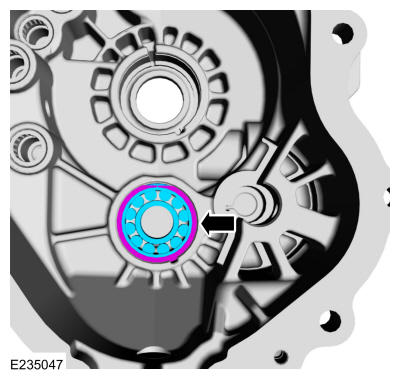

- Remove the retaining ring and the countershaft bearing.
