Disassembly And Assembly Of Subassemblies: Countershaft: Disassembly
WARNING: This page is about a different variant/trim than selected.

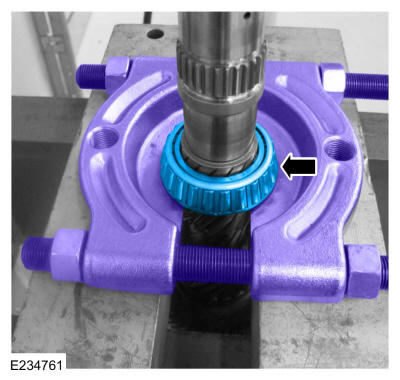

- Using a press and a bearing separator, remove the front roller bearing. Use the General Equipment: Bearing Separator. Use the General Equipment: Hydraulic Press

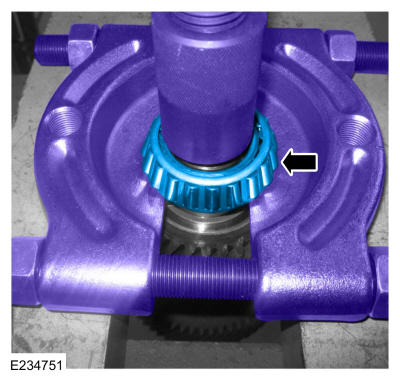

- Using a press and a bearing separator, remove the rear roller bearing. Use the General Equipment: Bearing Separator. Use the General Equipment: Hydraulic Press
