Clutch Housing: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clutch housing gasket.
    GFD288463Courtesy of FORD MOTOR COMPANY
  2. Remove the front input shaft and the countershaft bearing races and the shims.
    GFD288464Courtesy of FORD MOTOR COMPANY

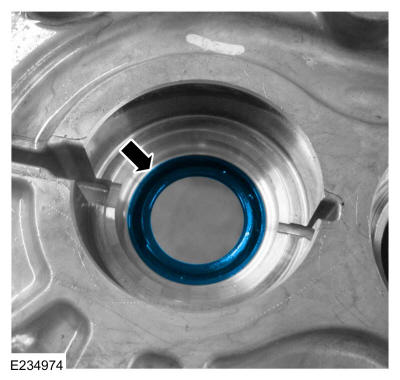

  3. Remove the input shaft seal.
    GFD288465Courtesy of FORD MOTOR COMPANY
  4. Remove the oil pump pick-up tube.
    GFD288466Courtesy of FORD MOTOR COMPANY
  5. Remove the oil pressure regulator.
    GFD288467Courtesy of FORD MOTOR COMPANY
  6. Remove the snap ring and the oil pump.
GFD288468Courtesy of FORD MOTOR COMPANY
