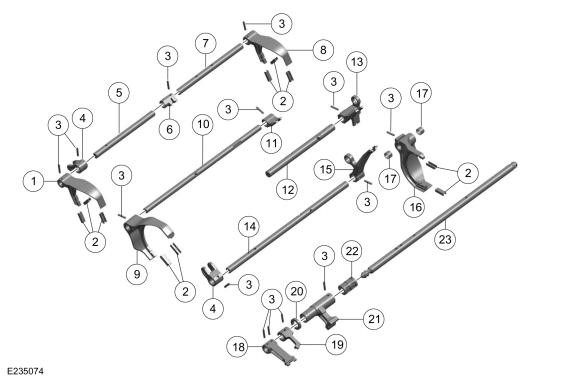

Shift Forks
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | 5-6 shift fork |
| 2 | Shift fork pads (10 required) |
| 3 | Roll pins (14 required) |
| 4 | Inverter gate (2 required) |
| 5 | 5-6 shift shaft |
| 6 | Reverse shift gate |
| 7 | Reverse shift shaft |
| 8 | Reverse shift fork |
| 9 | 1-2 shift fork |
| 10 | 1-2 shift shaft |
| 11 | 1-2 shift gate |
| 12 | 3-4 shift shaft |
| 13 | 3-4 shift gate |
| 14 | 5-6 shift shaft |
| 15 | 5-6 shift gate |
| 16 | 3-4 shift fork |
| 17 | 3-4 shift fork bushings |
| 18 | Selector finger guide plate |
| 19 | Reverse cam |
| 20 | Selector finger front spacer |
| 21 | Selector finger |
| 22 | Selector finger rear spacer |
| 23 | Main shift shaft |
