Transmission Fluid Cooler: Installation
WARNING: This page is about a different variant/trim than selected.

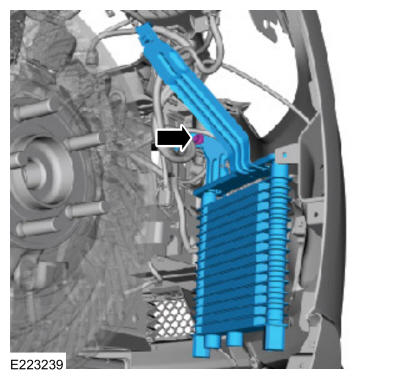

- Install the transmission fluid cooler and the bolt.
- Do not tighten the bolt at this time.

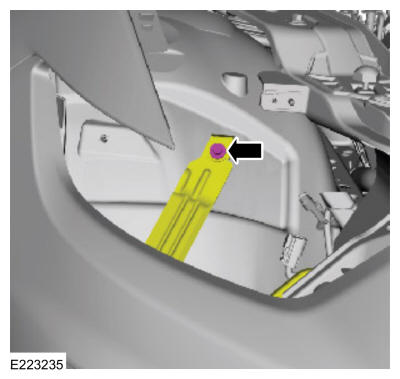

- Install the transmission fluid cooler bolt.
- Do not tighten the bolt at this time.

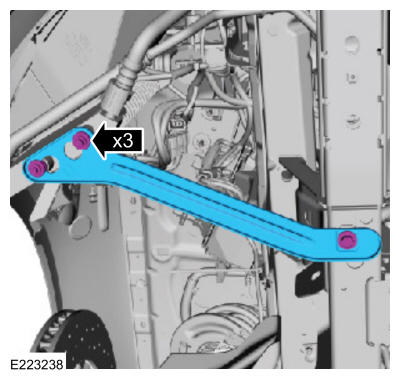

- Install the transmission fluid cooler bracket and the bolts.
Torque: 89 lb.in (10 Nm)
- Tighten the transmission fluid cooler bolt.
Torque: 177 lb.in (20 Nm)
- Tighten the transmission fluid cooler bracket bolt.
Torque: 177 lb.in (20 Nm)

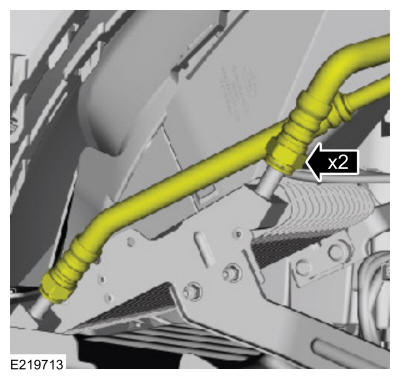

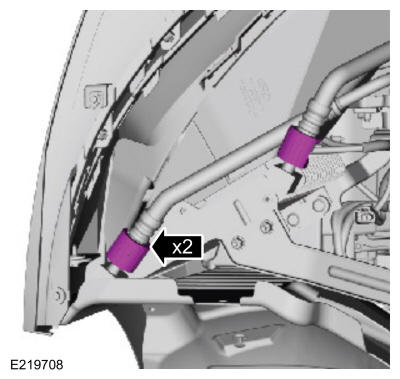

- Connect the transmission fluid cooler tubes.
- Install the secondary latches.

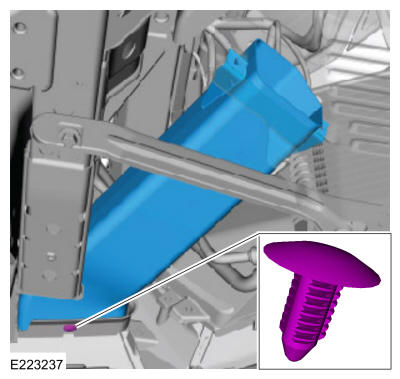

- Install the RH brake cooling pipe and the pushpin.

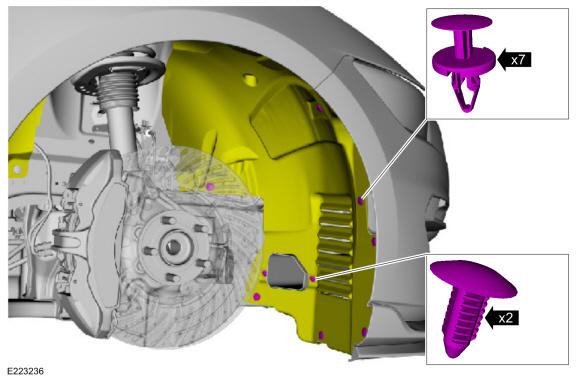

- Position the splash shield and install the pushpins.
- Install RH front wheel and tire. Refer to: Wheel and Tire .
- Install the underbody shield and the bolts.
- Install the underbody shield and the bolts.
- Install the LH headlamp assembly. Refer to: Headlamp Assembly - Vehicles With: SVT Performance Package .
- Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
