Pilot Bearing: Removal
WARNING: This page is about a different variant/trim than selected.
All vehicles
-
NOTE: The pilot bearing is not serviceable on vehicles equipped with a 5.0L or 5.2L engine. Install a new flywheel.
Remove the clutch disc and pressure plate. Refer to: Clutch Disc and Pressure Plate - 2.3L EcoBoost (231kW/314PS) . Refer to: Clutch Disc and Pressure Plate - 5.0L 32V Ti-VCT . Refer to: Clutch Disc and Pressure Plate - 5.2L 32V Ti-VCT .
5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS)/5.2L 32V Ti-VCT
- Remove the flywheel. Refer to: Flywheel
.
Refer to: Flywheel
.
2.3L EcoBoost (231kW/314PS)

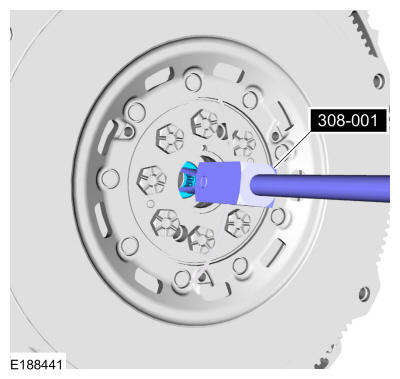

- Using the special tool, remove the pilot bearing. Use Special Service Tool: 308-001 (T58L-101-B) Remover, Pilot Bearing.
