Clutch Disc and Pressure Plate - 5.2L 32V Ti-VCT: Installation

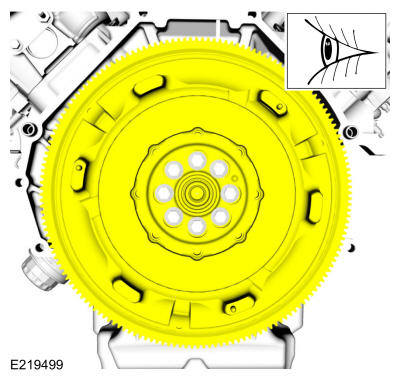

- Inspect the flywheel for damage, burn marks or wear and install a new flywheel if necessary.
-
NOTE: If installing a new pressure plate and/or flywheel, align the paint dot on the pressure plate as close as possible to the paint dot on the flywheel or a clutch system vibration can occur.

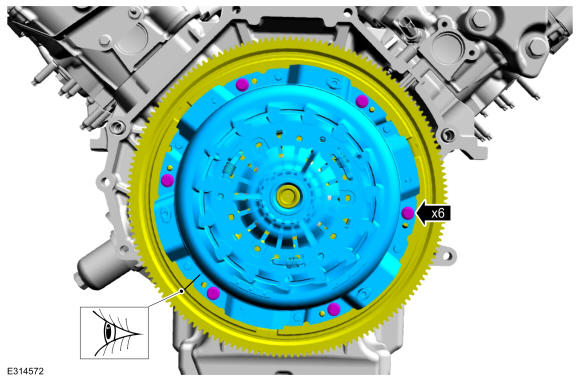

If installing a new pressure plate. Using a clutch aligner, position the clutch disc on the flywheel. Align the pressure plate to the flywheel using the paint dots. Install new pressure plate bolts by turning the bolts 1 turn at a time in a star pattern until the clutch is fully secured. Use the General Equipment: Clutch Alignment Tool
Torque
:Stage 1: 25 lb.ft (34 Nm) Stage 2: 60 deg.
-
NOTE: If installing the original pressure plate, align it using the index-marks made during removal or a clutch system vibration can occur.
If reusing pressure plate. Using a clutch aligner, position the clutch disc on the flywheel. Align the pressure plate to the flywheel using the index-marks made during removal. Install new pressure plate bolts by turning the bolts 1 turn at a time in a star pattern until the clutch is fully secured. Use the General Equipment: Clutch Alignment Tool
Torque
:Stage 1: 25 lb.ft (34 Nm) Stage 2: 60 deg.
- Install the transmission. Refer to: Transmission .
- After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
