Mass Air Flow (MAF) and Intake Air Temperature (IAT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details

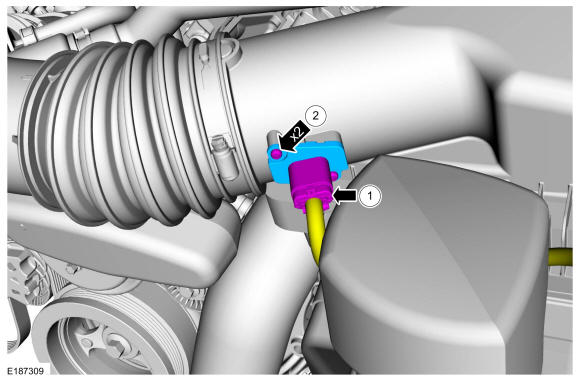

1. Disconnect the mass air flow (MAF) intake air temperature (IAT) sensor electrical connector.
2. Remove the retainers and the mass air flow (MAF) intake air temperature (IAT) sensor.
  Torque: 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY
