Knock Sensor (KS): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the intake manifold. Refer to: Intake Manifold .
-
NOTE: Note the position of the components before removal.

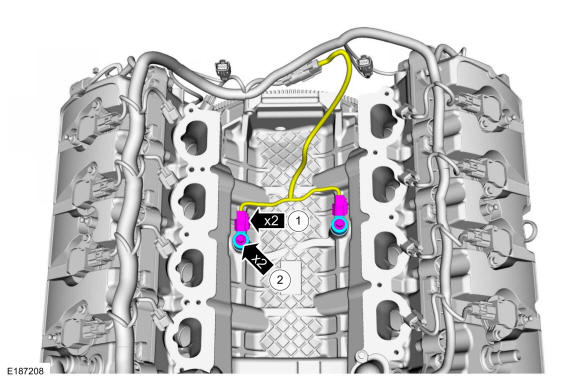

- Disconnect the KS electrical connectors.
- Remove the bolts and the KS.
Torque: 177 lb.in (20 Nm)
