Intake Manifold Runner Control (IMRC) Solenoid: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.

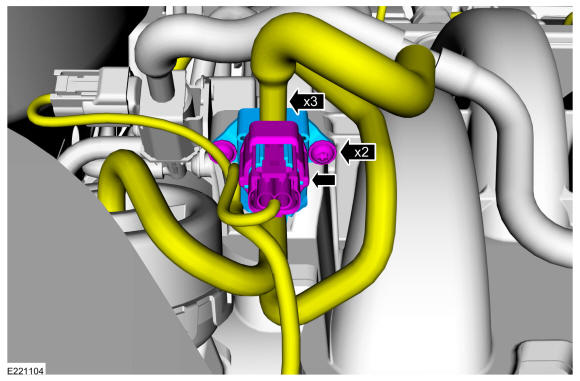

LH Intake Manifold Runner Control (IMRC) Solenoid
-
- Disconnect the electrical connector and the vacuum hoses from the IMRC solenoid.
- Remove the 2 retainers and remove the IMRC solenoid.
Torque: 53 lb.in (6 Nm)

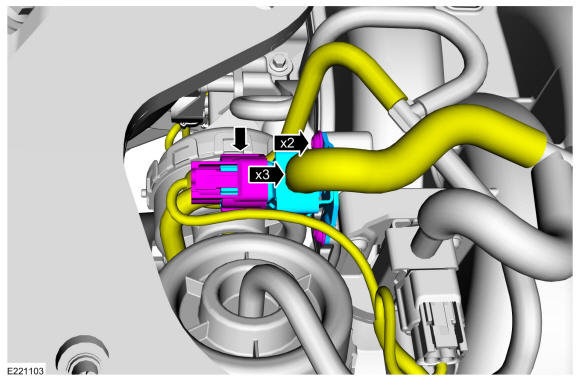

RH Intake Manifold Runner Control (IMRC) Solenoid
-
- Disconnect the electrical connector and the vacuum hoses from the IMRC solenoid.
- Remove the 2 retainers and remove the IMRC solenoid.
Torque: 53 lb.in (6 Nm)
