Intake Manifold Runner Control (IMRC) Position Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the intake manifold. Refer to: Intake Manifold .
-

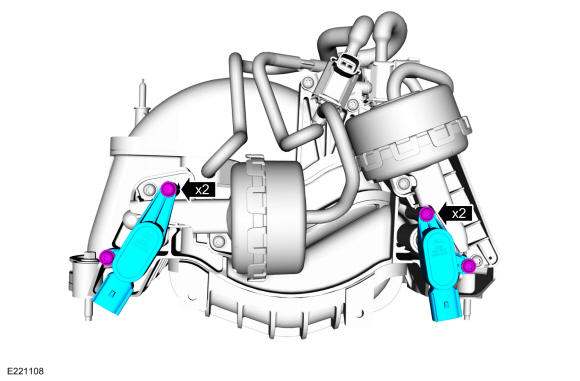

- Remove the retainers and the LH IMRC position sensor.
Torque: 53 lb.in (6 Nm)
- Remove the retainers and the RH IMRC position sensor.
Torque: 53 lb.in (6 Nm)
- Remove the retainers and the LH IMRC position sensor.
