Intake Manifold Runner Control (IMRC) Actuator: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the intake manifold. Refer to: Intake Manifold .
- Remove the IMRC sensors. Refer to: Intake Manifold .

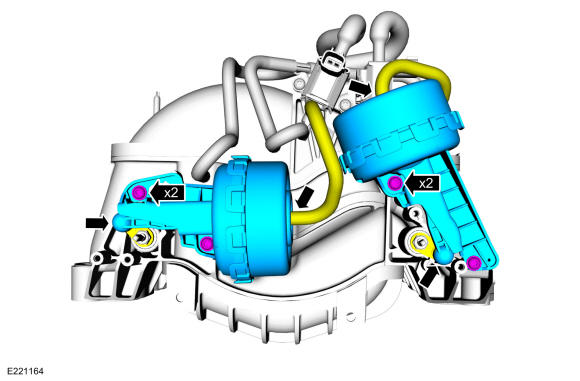

- Remove the hoses, retainers and the IMRC actuators.
Torque: 53 lb.in (6 Nm)
