Heated Oxygen Sensor (HO2S): Removal
WARNING: This page is about a different variant/trim than selected.
All sensors
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview
.

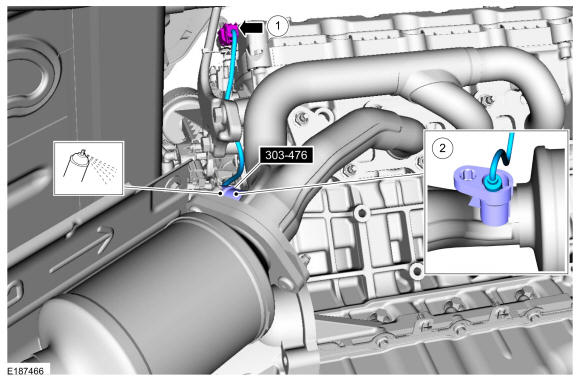

RH (right-hand) Heated Oxygen Sensor (HO2S)
-
- Disconnect the HO2S electrical connector.
- Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Motorcraft® Penetrating and Lock Lubricant / XL-1

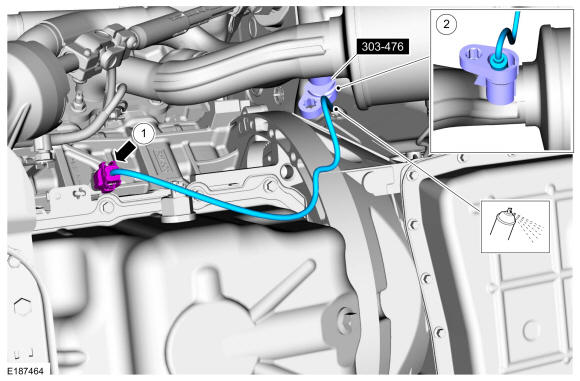

LH (left-hand) Heated Oxygen Sensor (HO2S)
-
- Disconnect the HO2S electrical connector.
- Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Motorcraft® Penetrating and Lock Lubricant / XL-1
