Engine Oil Pressure (EOP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-

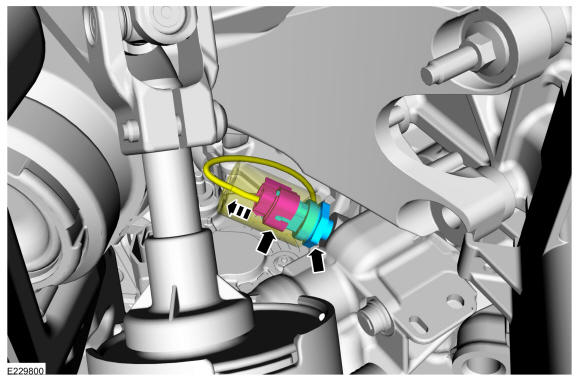

- Remove the cover and disconnect the EOP sensor electrical connector.
-
NOTE: If the oil pressure sensor is to be reused, apply thread sealant.
Remove the EOP sensor.
Material: Motorcraft® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)
Torque: 24 lb.ft (33 Nm)
