Cylinder Head Temperature (CHT) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the intake manifold. Refer to: Intake Manifold .
-
NOTE: Do not reuse the CHT sensor, install a new sensor.

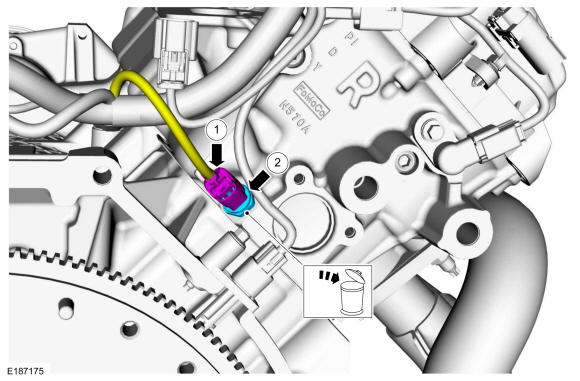

- Disconnect the CHT sensor electrical connector.
- Remove and discard the CHT sensor.
Torque: 97 lb.in (11 Nm)
