Clutch Pedal Position (CPP) Switch: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

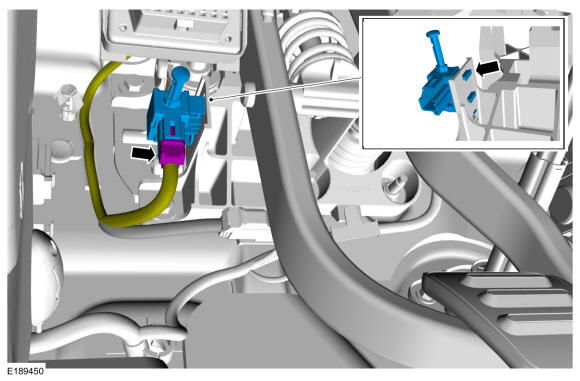

  1. Disconnect the electrical connector and remove CPP switch from the bracket.
GFD287233Courtesy of FORD MOTOR COMPANY
