Electronic Engine Controls - Component Location
WARNING: This page is about a different variant/trim than selected.

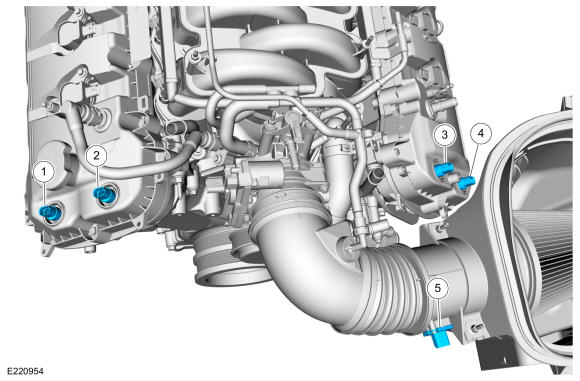

Electronic Engine Controls- Front
| Item | Description |
|---|---|
| 1 | RH exhaust VCT oil control solenoid |
| 2 | RH intake VCT oil control solenoid |
| 3 | LH intake VCT oil control solenoid |
| 4 | LH exhaust VCT oil control solenoid |
| 5 | Mass Air Flow (MAF) Intake Air Temperature (IAT) sensor |

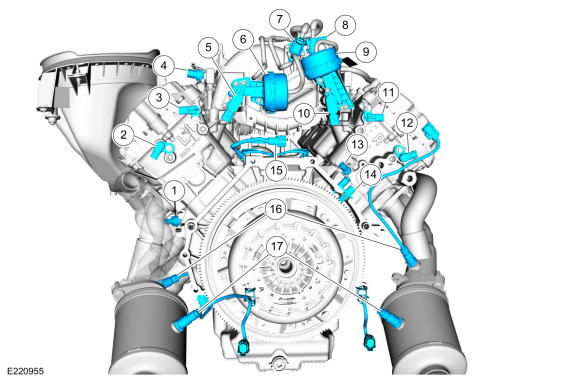

Electronic Engine Controls - Rear
| Item | Description |
|---|---|
| 1 | Oil Pressure sensor |
| 2 | LH exhaust CMP sensor |
| 3 | LH intake CMP sensor |
| 4 | FRP and Temperature sensor |
| 5 | Left hand IMRC position sensor |
| 6 | Left hand IMRC actuator |
| 7 | Left hand IMRC solenoid |
| 8 | Right hand IMRC solenoid |
| 9 | Right hand IMRC actuator |
| 10 | Right hand IMRC position sensor |
| 11 | RH intake CMP sensor |
| 12 | RH exhaust CMP sensor |
| 13 | CHT sensor |
| 14 | CKP sensor |
| 15 | KS |
| 16 | HO2S |
| 17 | Catalyst Monitor sensor |

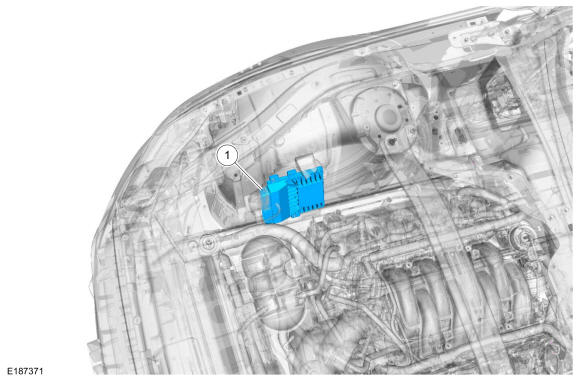

Powertrain Control Module (PCM)
| Item | Description |
|---|---|
| 1 | PCM |
