Starter Motor: Installation
WARNING: This page is about a different variant/trim than selected.

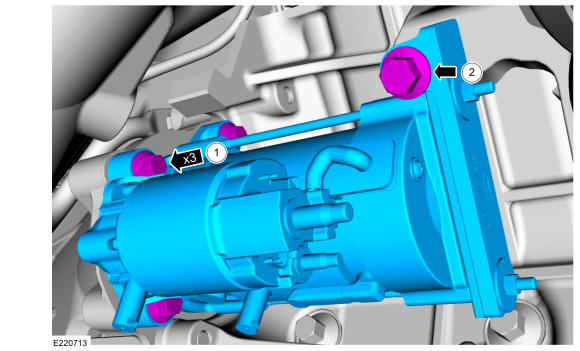

- Install the starter motor, install the starter motor bolts hand tight, then tighten in the sequence shown.
Torque: 1 Starter to engine mounting bolts : 18 lb.ft (25 Nm) 2 Starter bracket to engine mount bolt : 41 lb.ft (55 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- To install, reverse the removal procedure.
