Turbocharger Coolant Supply Tube: Installation

WARNING: This page is about a different variant/trim than selected.

Install the new turbocharger coolant tube O-ring seal and lubricate with clean engine coolant. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

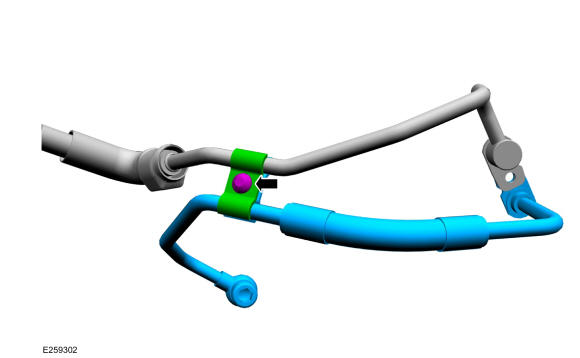

Assemble the turbocharger coolant supply tube and the turbocharger coolant return tube. Install the turbocharger coolant tube clamp and the turbocharger coolant tube clamp bolt finger tight.

Courtesy of FORD MOTOR COMPANY
Lubricate the turbocharger coolant tube O-ring seals with clean engine coolant. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS
  Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

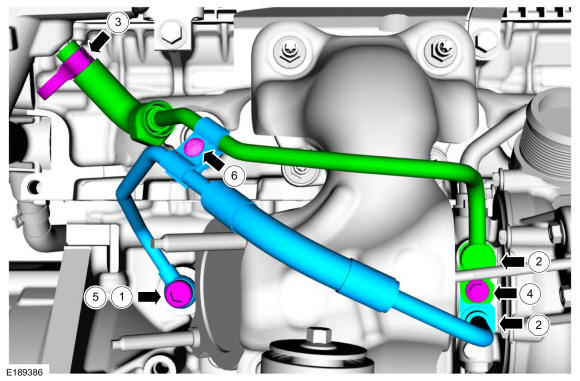

1. Install the turbocharger cooling tube bolts finger tight at this stage.
2. Fit the O-ring end of the turbocharger coolant tubes to the turbocharger. The lower coolant inlet tube goes into the turbocharger first.
  Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)
3. Install the turbocharger coolant tube hose end to the water outlet adapter port. Use the General Equipment: Hose Clamp Remover/Installer
4. Tighten turbocharger the coolant tube bolt to:
  Torque: 89 lb.in (10 Nm)
5. Tighten turbocharger the coolant tube bolt to:
  Torque: 27 lb.ft (37 Nm)
6. Tighten the turbocharger clamp bolt to:
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

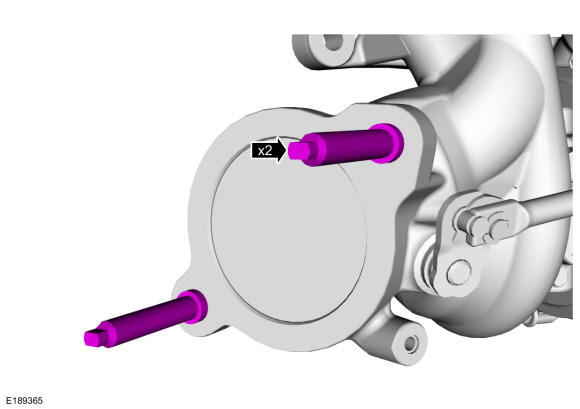

If removed, install and tighten the turbocharger exhaust studs.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Install the catalytic converter. Refer to: Catalytic Converter .
Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Start and check for leaks.
