Turbocharger - Component Location

WARNING: This page is about a different variant/trim than selected.

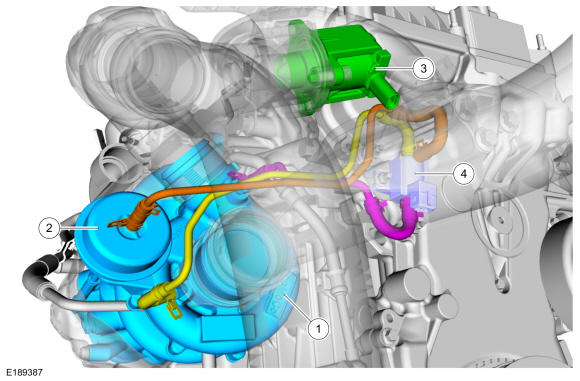

GFD287015Courtesy of FORD MOTOR COMPANY
Item Description
1 Turbocharger
2 Wastegate actuator
3 Turbocharger bypass valve
4 Wastegate control valve solenoid
