Ignition Coil-On-Plug: Installation

WARNING: This page is about a different variant/trim than selected.

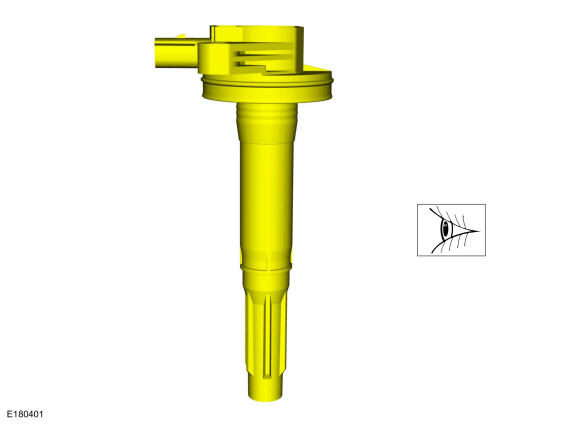

  1. Inspect the ignition coil-on-plug assembly for cracks, rips, or tears. Replace any damaged coil-on-plug assemblies.
    GFD287151Courtesy of FORD MOTOR COMPANY
    1. Install the ignition coil-on-plugs.

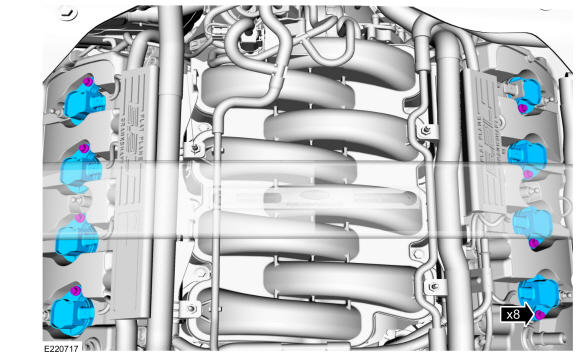

    2. Install the ignition coil-on-plug bolts.

      Torque: Stage 1: 62 lb.in (7 Nm) Stage 2: 45 deg.

    GFD287150Courtesy of FORD MOTOR COMPANY

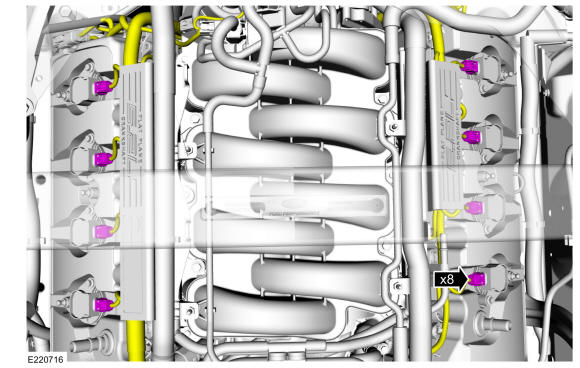

  3. Connect the ignition coil-on-plug electrical connectors.
    GFD287149Courtesy of FORD MOTOR COMPANY

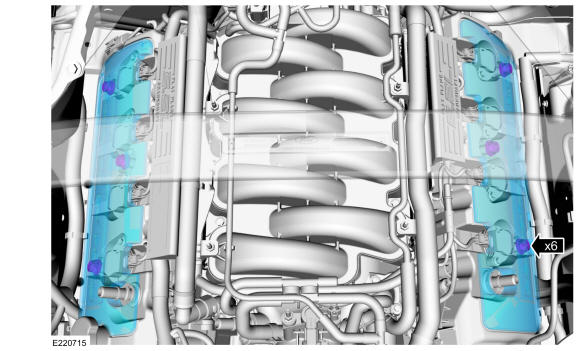

  4. Install the ignition coil-on-plug covers.
    GFD287148Courtesy of FORD MOTOR COMPANY

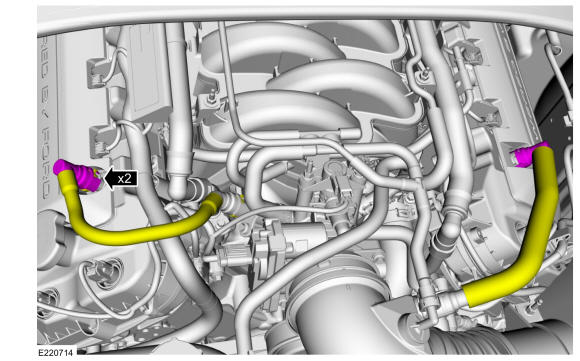

  5. Connect the PCV hose quick release couplings. Refer to: Quick Release Coupling .
GFD287147Courtesy of FORD MOTOR COMPANY
