Clutch Controls - Component Location

WARNING: This page is about a different variant/trim than selected.

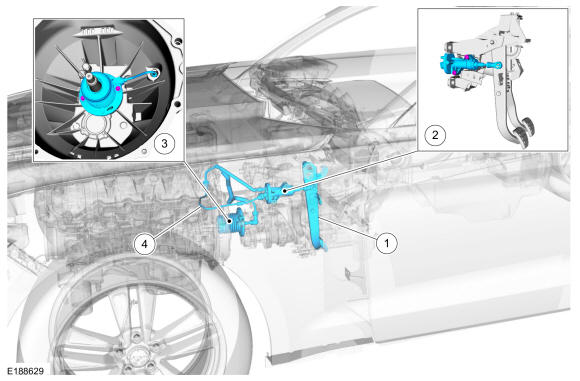

GFD288065Courtesy of FORD MOTOR COMPANY
Item Description
1 Clutch pedal
2 Clutch master cylinder
3 Clutch slave cylinder
4 Clutch hydraulic fluid tubes
