Secondary Timing Chain Tensioner: Installation

Left hand secondary timing chain tensioner

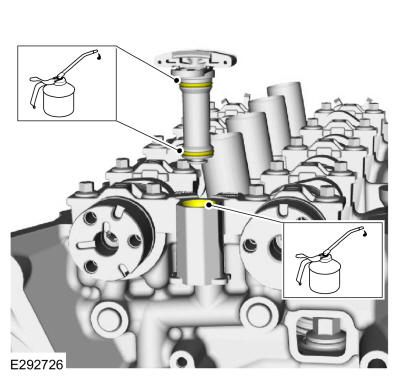

1. Apply clean engine oil to the secondary timing chain tensioner O-ring seals and mega cap bore.

   Courtesy of FORD MOTOR COMPANY

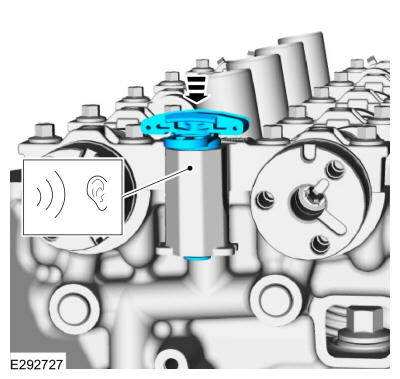

2. Install the secondary timing chain tensioner by pushing it down all the way until a snap is heard and the tensioner is seated all the way down the mega cap bore.

   Courtesy of FORD MOTOR COMPANY

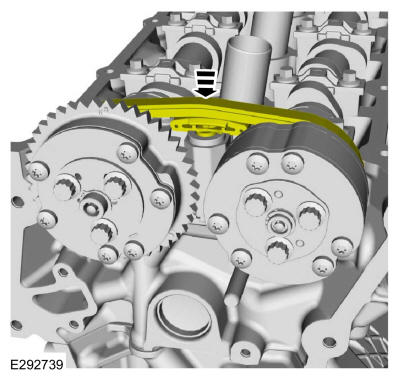

3. Install the secondary timing chain tensioner shoe.

   Courtesy of FORD MOTOR COMPANY

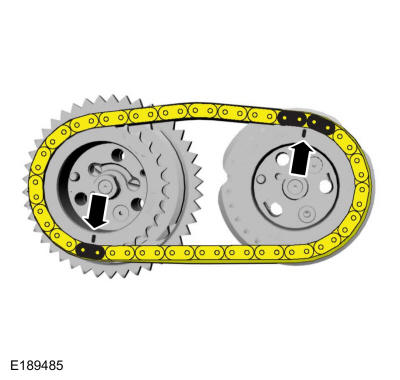

4. Position the secondary timing chain onto the VCT assemblies. Align the colored links on the secondary timing chain with the timing marks on the VCT assemblies as shown in the illustration.
   • The timing mark on the intake VCT assembly should align between the 2 consecutive colored links.
   • The timing mark on the exhaust VCT assembly should align with the single colored link.

   Courtesy of FORD MOTOR COMPANY

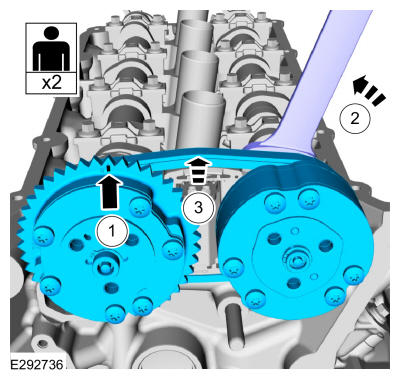

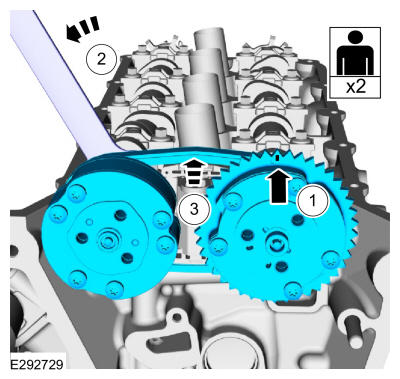

5. 1. Install the VCT unit and the secondary timing chain onto the camshafts. The timing mark on the exhaust VCT assembly should be approximately in the 12 o'clock position.
   2. Using a wrench on the flats of the camshaft, have an assistant rotate the intake camshaft counterclockwise until the locating pin of the VCT engages into the end of the camshaft.
   3. Slide the VCT assemblies onto the camshafts until they are fully seated.

   Courtesy of FORD MOTOR COMPANY

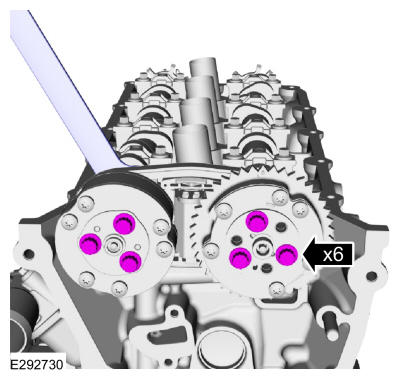

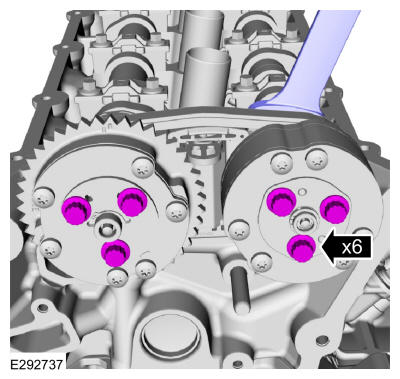

6. NOTE: Use a wrench on the flats of the camshaft to hold the camshafts while tightening the VCT assembly bolts.

   Install the intake and the exhaust VCT assembly bolts.

   Torque: Stage 1: 133 lb.in (15 Nm) Stage 2: 90 deg.

   Courtesy of FORD MOTOR COMPANY

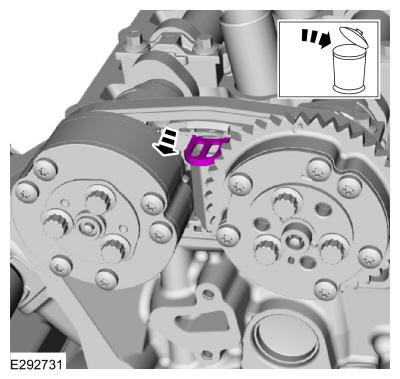

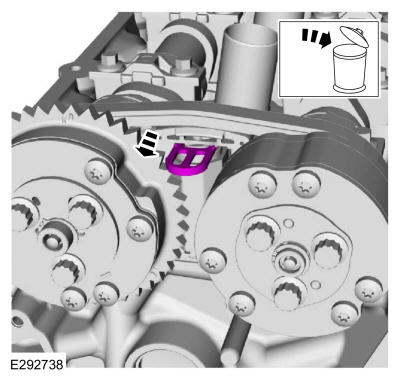

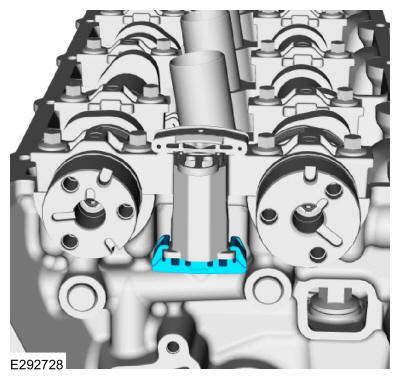

7. Remove and discard the secondary timing chain tensioner shipping clip.

   Courtesy of FORD MOTOR COMPANY

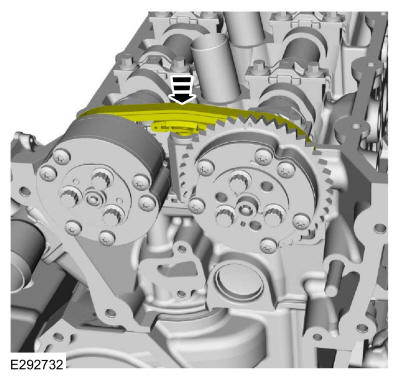

8. Activate the secondary timing chain tensioner by pressing down on the secondary timing chain and tensioner top shoe until it bottoms out, let go of the tensioner and it will spring up putting tension on the chain.

   Courtesy of FORD MOTOR COMPANY

9. Install the LH timing chain. Refer to: Timing Chain .

   Right hand secondary timing chain tensioner

   NOTE: Do not remove the secondary timing chain tensioner shipping clip, until instructed to do so.

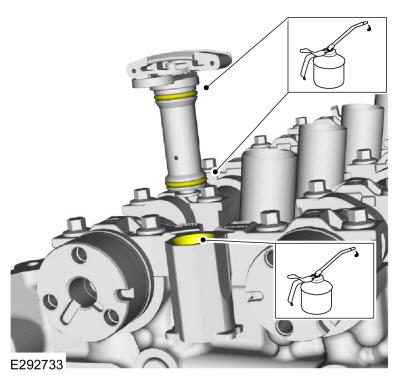

10. Apply clean engine oil to the secondary timing chain tensioner O-ring seals and mega cap bore.

    Courtesy of FORD MOTOR COMPANY

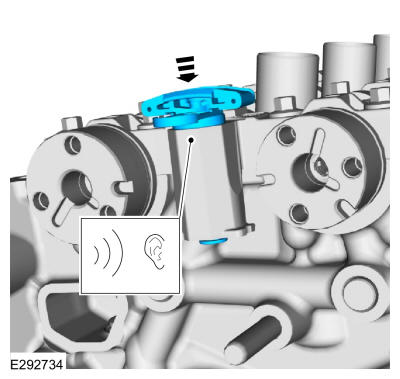

11. Install the secondary timing chain tensioner by pushing it down all the way until a snap is heard and the tensioner is seated all the way down the mega cap bore.

    Courtesy of FORD MOTOR COMPANY

12. Install the secondary timing chain tensioner shoe.

    Courtesy of FORD MOTOR COMPANY

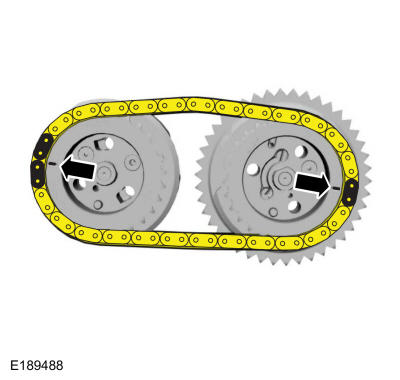

13. Position the secondary timing chain onto the VCT assemblies. Align the colored links on the secondary timing chain with the timing marks on the VCT assemblies as shown in the illustration.
    • The timing mark on the intake VCT assembly should align between the 2 consecutive colored links.
    • The timing mark on the exhaust VCT assembly should align with the single colored link.

    Courtesy of FORD MOTOR COMPANY

14. 1. Install the VCT unit and the secondary timing chain onto the camshafts. The timing mark on the exhaust VCT assembly should be approximately in the 12 o'clock position.
    2. Using a wrench on the flats of the camshaft, have an assistant rotate the intake camshaft counterclockwise until the locating pin of the VCT engages into the end of the camshaft.
    3. Slide the VCT assemblies onto the camshafts until they are fully seated.

    Courtesy of FORD MOTOR COMPANY

15. NOTE: Use a wrench on the flats of the camshaft to hold the camshafts while tightening the VCT assembly bolts.

    Install the intake and the exhaust VCT assembly bolts.

    Torque: Stage 1: 133 lb.in (15 Nm) Stage 2: 90 deg.

    Courtesy of FORD MOTOR COMPANY

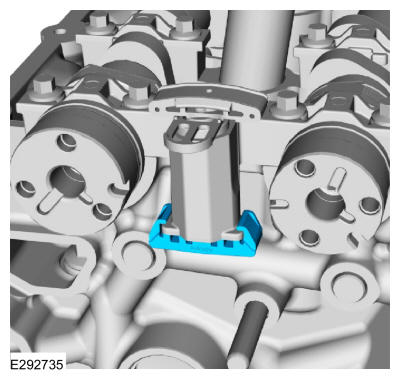

16. Remove and discard the secondary timing chain tensioner shipping clip.

    Courtesy of FORD MOTOR COMPANY

17. Activate the secondary timing chain tensioner by pressing down on the secondary timing chain and tensioner top shoe until it bottoms out, let go of the tensioner and it will spring up putting tension on the chain.

    Courtesy of FORD MOTOR COMPANY

18. Install the RH timing chain. Refer to: Timing Chain .
