Oil Cooler: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the bolts and the underbody shield.
    GFD286375Courtesy of FORD MOTOR COMPANY
  3. Remove the bolts and the underbody shield.
    GFD286376Courtesy of FORD MOTOR COMPANY
  4. Remove the LH wheel and tire. Refer to: Wheel and Tire .

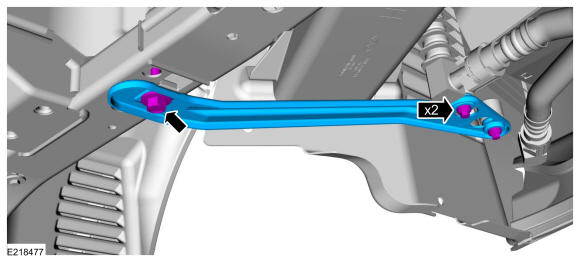

  5. Remove the fasteners and the bracket.
    GFD286422Courtesy of FORD MOTOR COMPANY

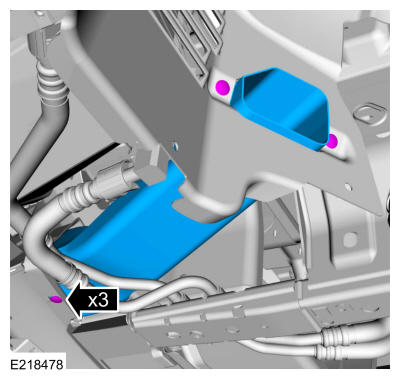

  6. Remove the retainers and the air duct.
    GFD286423Courtesy of FORD MOTOR COMPANY

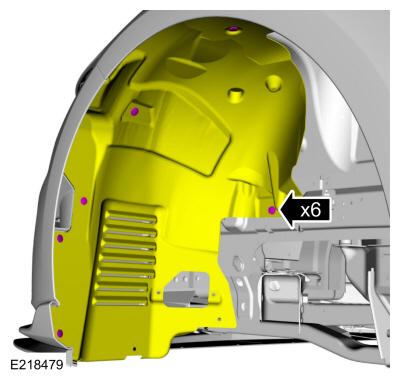

  7. Remove the retainers and position the shield aside.
    GFD286424Courtesy of FORD MOTOR COMPANY

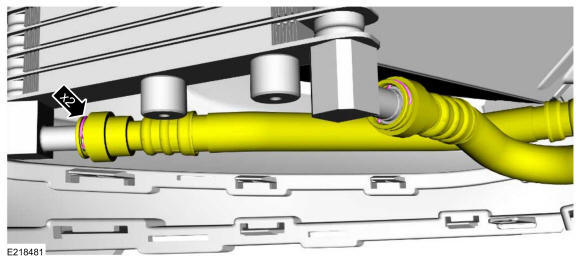

  8. Remove the retaining clips and disconnect the oil cooler tubes.
    GFD286425Courtesy of FORD MOTOR COMPANY

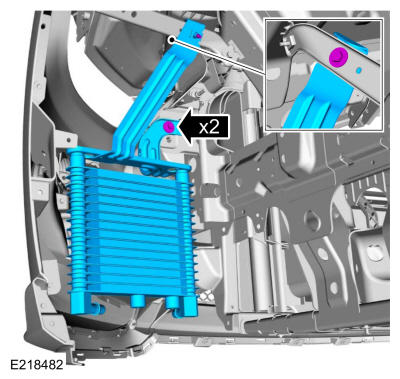

  9. Remove the fasteners and the oil cooler.
    GFD286426Courtesy of FORD MOTOR COMPANY

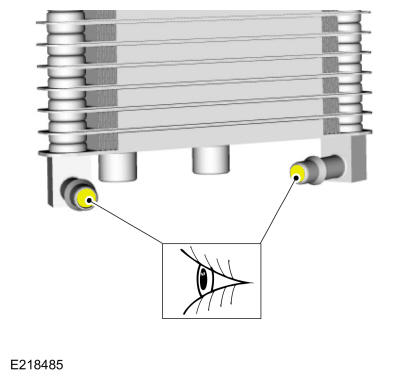

  10. NOTE: If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure. To diagnose mechanical concerns, refer to Engine .

    Inspect the oil cooler.

GFD286427Courtesy of FORD MOTOR COMPANY
