Removal And Installation: Flywheel: Installation
WARNING: This page is about a different variant/trim than selected.

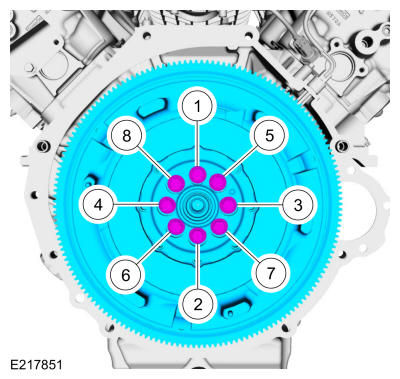

- Install the flywheel and the bolts.
Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 177 lb.in (20 Nm) Stage 3: 59 lb.ft (80 Nm)
- Install the clutch disc. Refer to: Clutch Disc and Pressure Plate - 5.2L 32V Ti-VCT .
- Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
