Cylinder Head RH: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Drain the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the following items:
- Refer to: Intake Manifold .
- Refer to: Camshaft RH .
- Refer to: Exhaust Manifold RH .
- Install the RH engine mount bracket, bolts and stud bolts.
Torque: 41 lb.ft (55 Nm)
-
- Using the special tools, lower the engine onto the RH engine mount.
- Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine, 303-F072 Support Bar, Engine.
- Disconnect the heater hose.
- Disconnect the camshaft position sensor electrical connector.
- Disconnect the CHT electrical connector.
-

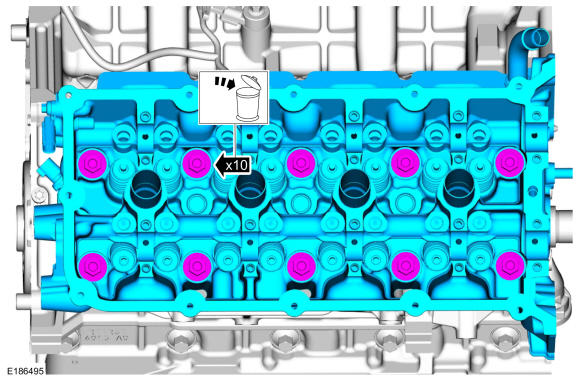

- Remove and discard the bolts.
- Remove the cylinder head.

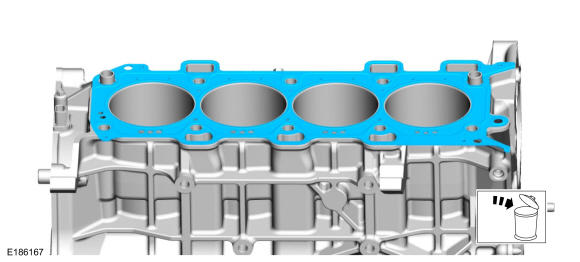

- Remove and discard the cylinder head gasket.
-
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.NOTE: Clean the cylinder head bolt holes in the cylinder block using compressed air. Make sure all coolant, oil or other foreign material is removed.

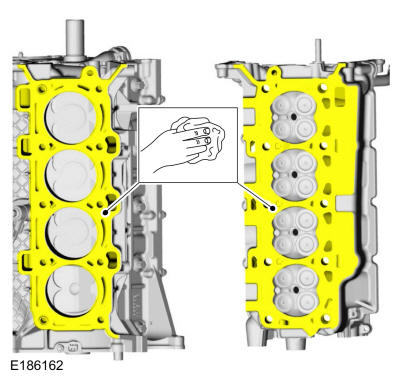

- Clean and inspect the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block
- Refer to: Cylinder Head Distortion .
- Refer to: Cylinder Block Distortion .
