Cylinder Head RH: Installation

WARNING: This page is about a different variant/trim than selected.

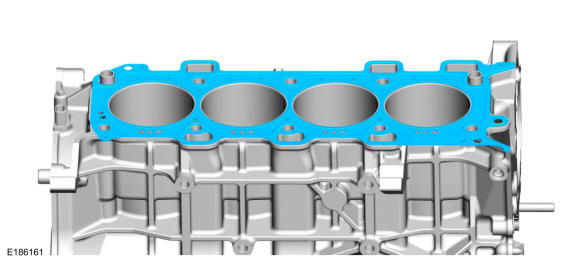

Install the new cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

Install the cylinder head and the new bolts.

Torque: Stage 1: 22 lb.ft (30 Nm) Stage 2: 37 lb.ft (50 Nm) Stage 3: Tighten an additional : 90 deg. Stage 4: Tighten an additional : 90 deg.

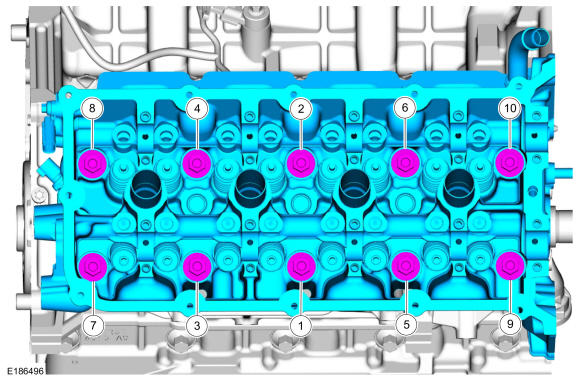

Fig 1: RH Cylinder Head Tightening Sequence
Courtesy of FORD MOTOR COMPANY

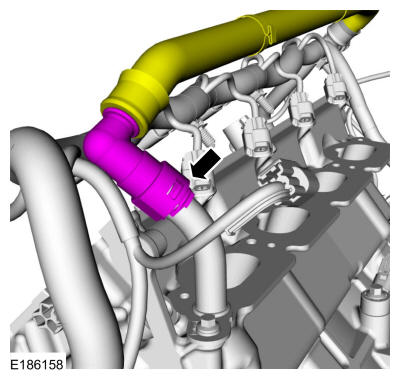

Connect the heater hose.

Courtesy of FORD MOTOR COMPANY

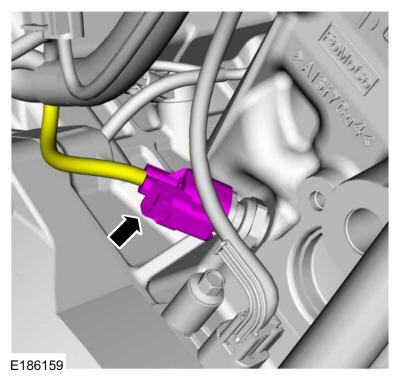

Connect the camshaft position sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

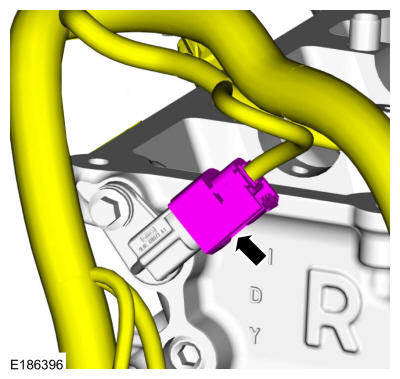

Connect the CHT electrical connector.

Courtesy of FORD MOTOR COMPANY

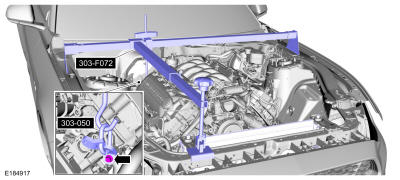

- Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine, 303-F072 Support Bar, Engine.
- Using the special tools raise the RH side of the engine 25 mm (1 inch).
Courtesy of FORD MOTOR COMPANY

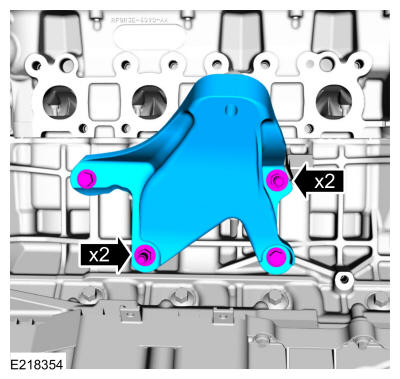

Remove the bolts, stud bolts and the RH engine mount bracket.

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Exhaust Manifold RH .
2. Refer to: Camshaft RH .
3. Refer to: Intake Manifold .
Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
