Crankshaft Rear Seal: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the flywheel. Refer to: Flywheel .
-
- Remove the crankshaft sensor ring and the engine-to-transmission spacer plate.
- Inspect the crankshaft sensor ring for damage. If the crankshaft sensor ring has been dropped or has any visual damage, it must be discarded.

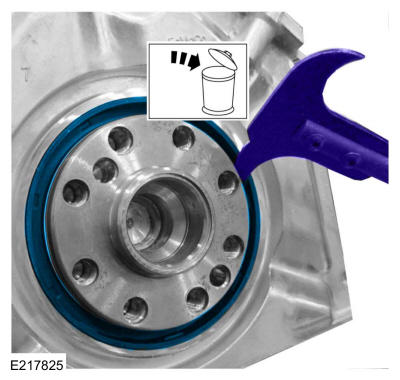

- Using a universal seal puller, remove and discard the crankshaft rear seal.
