Crankshaft Rear Seal with Retainer Plate: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the flywheel. Refer to: Flywheel .
-

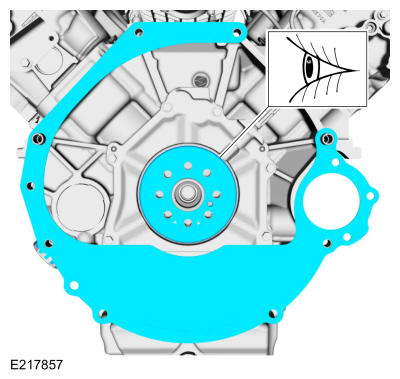

- Remove the crankshaft sensor ring and the engine-to-transmission spacer plate.
- Inspect the crankshaft sensor ring for damage. If the crankshaft sensor ring has been dropped or has any visual damage, it must be discarded.

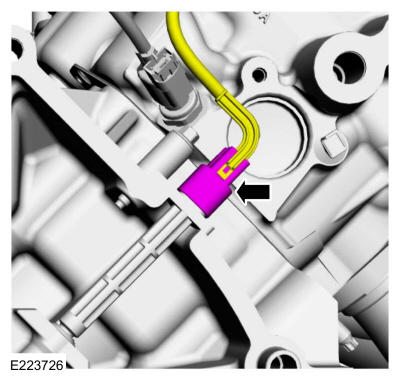

- Disconnect the CKP sensor electrical connector.

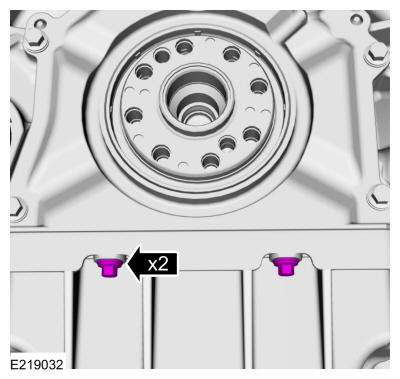

- Remove the oil pan-to-rear main seal retainer plate bolts.
-
- Loosen the CKP sensor bolt.

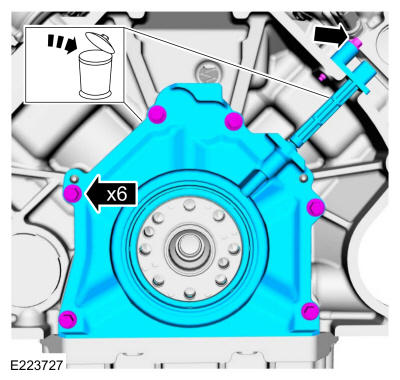

- Remove the rear seal retainer plate bolts.
- Remove and discard the rear seal retainer plate and CKP sensor.

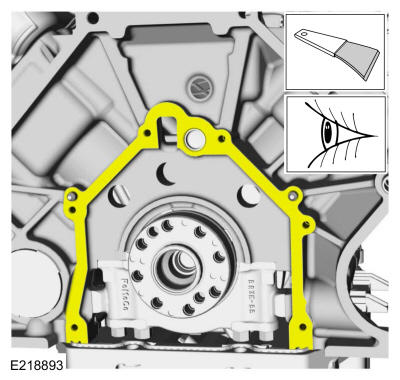

- Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
