Crankshaft Rear Seal with Retainer Plate: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: The primer is good for up to 30 days after it has been applied.

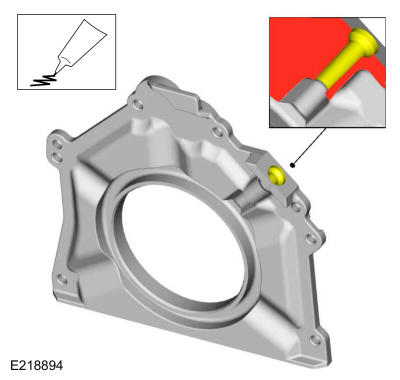

- Apply Loctite® 7649 Primer to the CKP sensor bore of the rear seal retainer plate.
- Allow the primer to dry for 2 minutes, making sure no other substance comes in contact with the primed surface.
Courtesy of FORD MOTOR COMPANY
NOTE: If the rear crankshaft seal retainer plate is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned. Failure to follow this procedure may cause future oil leaks.

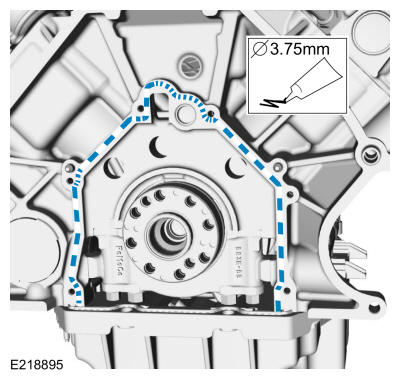

Apply a 3.75 mm (0.147 in) bead of silicone gasket and sealant to the rear crankshaft seal retainer mating surface on the engine block.

Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

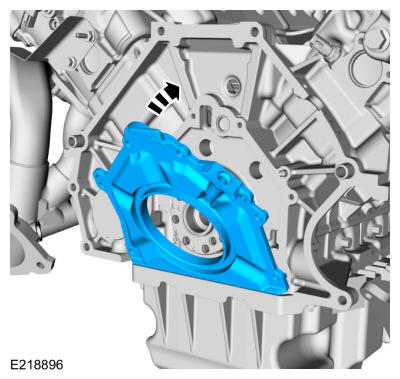

Tilt the seal retainer up and onto the rear of the cylinder block.

Courtesy of FORD MOTOR COMPANY
Install the bolts and tighten in sequence.
Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 45 deg.

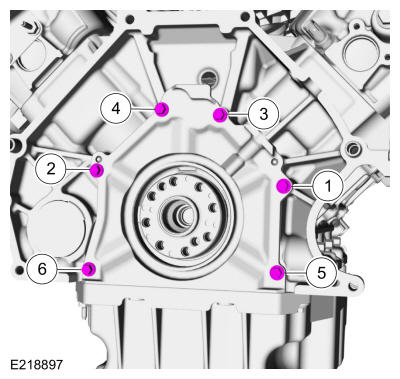

Fig 1: Crankshaft Rear Seal Retainer Plate Tightening Sequence
Courtesy of FORD MOTOR COMPANY

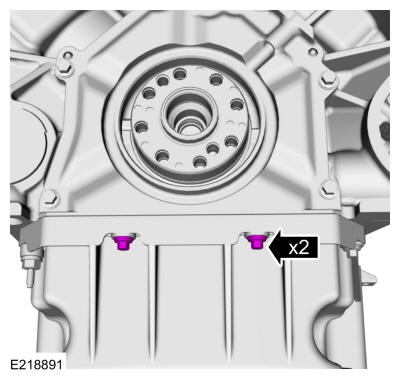

Install the oil pan-to-rear main seal retainer plate bolts.
Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 45 deg.

Courtesy of FORD MOTOR COMPANY

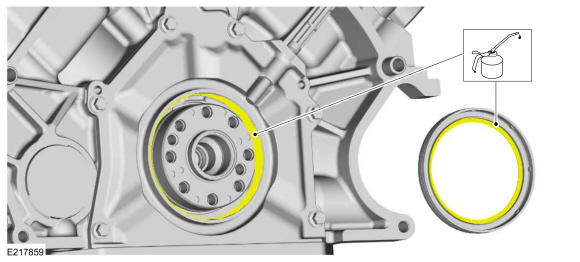

Lubricate the seal retaining plate bore and the seal lips with clean engine oil.
Material: Motorcraft® SAE 5W-50 Full Synthetic Motor Oil / XO-5W50-QGT (WSS-M2C931-C)

Courtesy of FORD MOTOR COMPANY

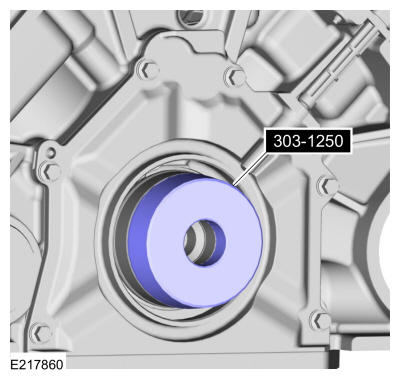

Position the special tool onto the end of the crankshaft. Use Special Service Tool: 303-1250 Seal Installer, Rear Main.

Courtesy of FORD MOTOR COMPANY
NOTE: The engine uses a rear seal that is unique from previous V-8 engines, note the orientation of the seal in the detail box in the graphic.

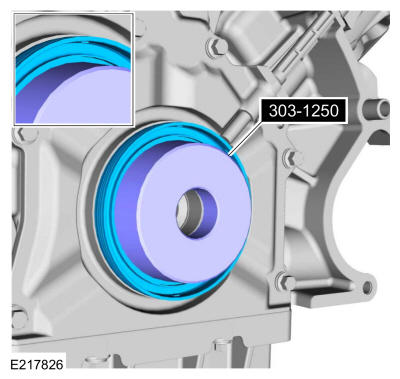

Slide the new crankshaft rear seal onto the tool. Use Special Service Tool: 303-1250 Seal Installer, Rear Main.

Courtesy of FORD MOTOR COMPANY

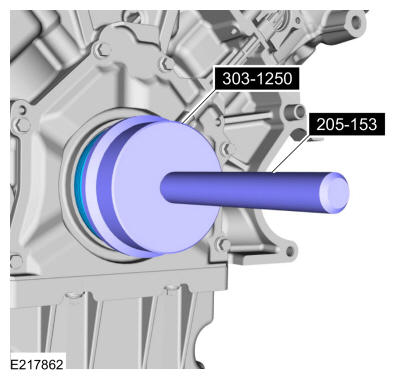

Using the special tools, install the crankshaft rear seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1250 Seal Installer, Rear Main.

Courtesy of FORD MOTOR COMPANY
Apply a 2 mm bead of Loctite® 638 Sealer around the barrel of the CKP sensor 25mm (1 in) from the bottom end.

Courtesy of FORD MOTOR COMPANY

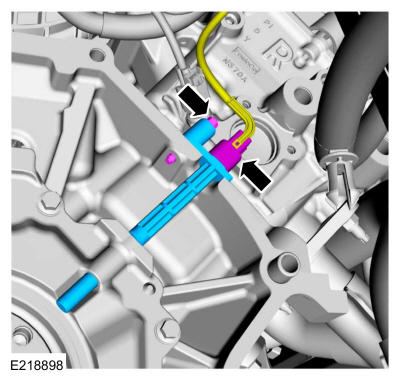

- Install the CKP sensor and bolt.
  Torque: 89 lb.in (10 Nm)
- Connect the CKP sensor electrical connector.
Courtesy of FORD MOTOR COMPANY

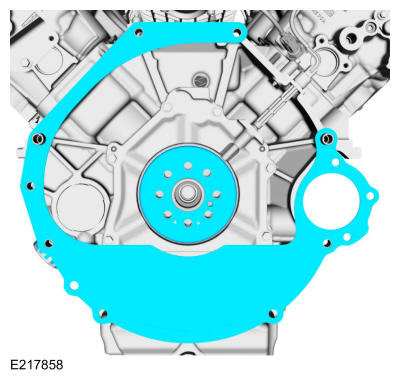

Install the crankshaft sensor ring and the engine-to-transmission spacer plate.

Courtesy of FORD MOTOR COMPANY
Install the flywheel. Refer to: Flywheel .
