Crankshaft Front Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the following items:

    1. Refer to: Cooling Fan Motor and Shroud .
    2. Refer to: Air Conditioning (A/C) Compressor Belt .

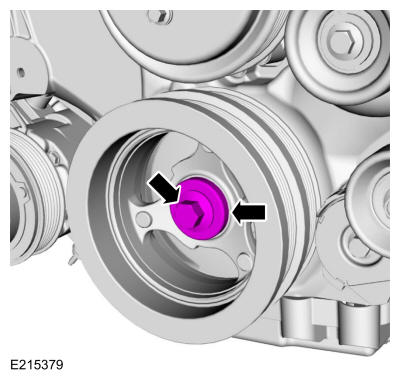

  2. Remove the crankshaft pulley bolt and washer.
    GFD286298Courtesy of FORD MOTOR COMPANY

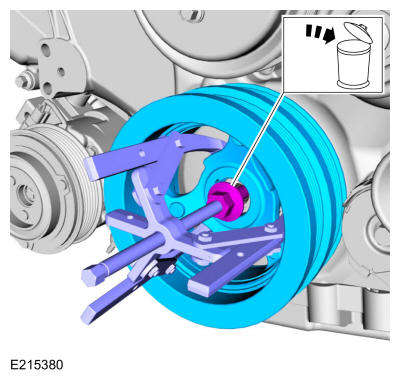

  3. Using the 3 Leg Puller and the crankshaft pulley bolt, remove the crankshaft pulley. Use the General Equipment: Three Leg Puller
    GFD286299Courtesy of FORD MOTOR COMPANY
    • NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

      Using the special tool and the crankshaft bolt, remove and discard the crankshaft front oil seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.

    • Discard the crankshaft pulley bolt.

GFD286300Courtesy of FORD MOTOR COMPANY
